GIES Case Dataset on Panshi
Qiantang (Thousands Reservoirs) Rice in Permanent Farmland, Jilin Province of
China
Song, X. F.1,2,3*
Yu, J. Q.4 Qi, W. 4* Wang, Z. W.5* Qiao, Y. B.5 Yang, L. H.1,2,3 Yao, D. X.1,3 Fu, J. Y.1 Du, X. L.6 Wu, F.7 Liu, H. B.8 Zhu, X. G.9 Chen, C. H.5 Ren, J. X.5 Wu, Y. M.10 Li, L.11 Li, E. G.12 Yao, L. P.13 Zheng, F.14 Yan, G. D.15 Zhang, C. M.16 Piao, R.17 Guo, C. H.18 Sun, Z. G.19 Gu, Q.20 Zhou, L. G.21 Hu, H. Y.22 Zhang, L. J.23 Sun, H. F.24 Li, H. S.25
1. Institute of Geographic Sciences
and Natural Resources Research, Chinese Academy of Sciences, Beijing 100010,
China; 2. University of Chinese Academy of Sciences??Beijing 100049??China;
3. Xiongan Institute of Innovation, Xiongan New Area 071899, China; 4. Panshi
Municipality, Jilin, Panshi 132000, China; 5. Panshi Agriculture and Rural
Affairs Bureau, Jilin, Panshi 132300, China; 6. Jilin University, Jilin,
Changchun 130062, China; 7. Panshi Supply and Marketing Investment (Group) Co.,
Ltd., Jilin, Panshi 132300, China; 8. Institute of Agricultural Resources and
Regional Planning, Chinese Academy of Agricultural Sciences, Beijing 100081,
China; 9. Beijing Tianhang Create Technology Co., Ltd., Beijing 100085, China;
10. Futai Town, Jilin, Panshi 132308, China; 11. Niuxin Town, Jilin, Panshi
132315, China; 12. Jichang Town, Jilin, Panshi 132301, China; 13. Baoshan Town,
Jilin, Panshi 132327, China; 14. Songshan Town, Jilin, Panshi 132313, China;
15. Hulan Town, Jilin, Panshi 132309, China; 16. Yantongshan Town,Jilin, Panshi
132302, China; 17. Quchaihe Town, Jilin, Panshi 132303, China; 18. Chaoyangshan
Town, Jilin, Panshi 132323, China; 19. Fu??an District Office, Jilin, Panshi
132300, China; 20. Mingcheng Town, Jilin, Panshi 132301, China; 21. Hongqiling
Town, Jilin, Panshi 132312, China; 22. Yima Town, Jilin, Panshi 132305, China;
23. Shizui Town, Jilin, Panshi 132321, China; 24. Economic Development Zone,
Jilin, Panshi 132300, China; 25. Heishi Town, Jilin, Panshi 132312, China
Abstract: Panshi
Qiantang (Thousands Reservoirs) rice is planted in the low-lying areas
downstream of reservoirs and flood dam in Panshi city, Jilin province, with an
area of 17,787 ha. The case area is located in the transition zone from
Changbai Mountain to Songhuajing-Nenjiang Plain, a mostly hilly area. Snow-melt
water and precipitation are naturally collected into reservoirs and flood dam.
The soil in the rice field is mainly black soil rich in organic matter. The
soil quality is better than the standard of soil environmental quality risk
control value for soil contamination of agricultural land, and the quality of
irrigation water is better than that of urban drinking water. At present, there

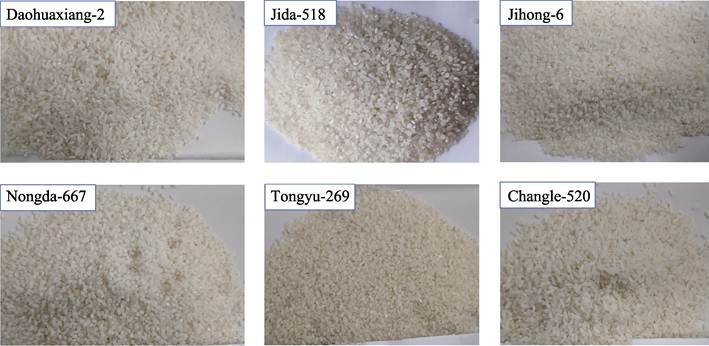

are mainly six rice varieties planted in Panshi city, and the qualities of the
rice are equal to or better than standards of Wuchang rice and Panjin rice. The
case proposes a new model of black soil protection and sustainable development
of permanent basic farmland. The case dataset consists of five data files:
location and scope of case study area; physical geographical data; rice variety
characteristics data; management data; and historical data. The data is
archived in .shp, .docx, .jpg, .tif. and .xlsx formats, and 22.4 MB in size.
Keywords: Panshi city; Qiantang (Thousands
Reservoirs) rice; permanent basic farmland; black soil; sustainable
development; Geographical Indications for Environment & Sustainability
(GIES) ; case 12
DOI: https://doi.org/10.3974/geodp.2022.02.01
CSTR: https://cstr.escience.org.cn/CSTR:20146.14.
2022.02.01
Dataset Availability
Statement:
The dataset
supporting this paper was published and is accessible through the Digital Journal of Global Change Data
Repository at: https://doi.org/10.3974/geodb.2022.05.05.V1
or https://cstr.escience.org.cn/CSTR:20146.11.2022.05.05.V1.
1
Introduction
To
meet increasing demand for quality agricultural products, the protection of
origin of agricultural products has become more important. Agricultural
modernization and intelligent agriculture of ??quality geographical products??
(geographical indications, geographical product with unique features, and
geographical product with special traditional) came into being[1].
Panshi city is located in the central and southern part of Jilin province, in
the transitional zone between the Songnen Plain and the Changbai Mountains,
with unique ecological and atmospheric conditions. Panshi city has a vast area
of black soil[2,3]. The paddy fields lie in the downstream of the
reservoirs and ponds. The use of reservoirs and ponds for irrigation yields
??Jilin Panshi Qiantang (Thousands Reservoirs) rice??, a quality rice product
with regional geographical characteristics.
2 Metadata of the Dataset
Table 1 shows the metadata of Panshi Qiantang
(Thousands Reservoirs) rice case dataset on permanent farmland of ecosystem
protection and sustainable development[4].
Table 1 Metadata summary of the Panshi
Qiantang (Thousands Reservoirs) rice case dataset on permanent farmland of
ecosystem protection and sustainable development[4]
Items
|
Description
|
Dataset full name
|
Panshi Qiantang (Thousands Reservoirs)
rice case dataset on permanent farmland of ecosystem protection and
sustainable development
|
Dataset short name
|
PanshiRiceCase12
|
Authors
|
Song, X. F. 0000-0001-5244-1113, Institute
of Geographic Sciences and Natural Resources Research, CAS (IGSNRR/CAS),
songxf@igsnrr.ac.cn
Yu, J. Q., Panshi Municipality, 1539549166@qq.com
Qi, W., Panshi Municipality,
931300049@qq.com
Wang, Z. X., Panshi Agriculture and Rural
Affairs Bureau, pssnyj@163.cm
Qiao, Y. B., Panshi Agriculture and Rural
Affairs Bureau, 1104335154@qq.com
Yang, L. H. 0000-0002-4580-4972, IGSNRR/CAS,
yanglihu@igsnrr.ac.cn
Yao, D. X. 0000-0003-2274-0918, IGSNRR/CAS,
yaodongxu@igsnrr.ac.cn
Fu, J. Y., IGSNRR/CAS, fujy@igsnrr.ac.cn
Du, X. L., Jilin University, duxinglin2004@163.com
Wu, F., Panshi Supply and Marketing
Investment (Group) Co., Ltd., 1271138685@qq.com
Liu, H. B., Institute of Agricultural
Resources and Regional Planning, CAAS, liuhongbin@caas.cn
Zhu, X. G., BeijingTianhangHuachuang
Technology Co., Ltd., 18510867688@163.com
Chen, C. H., Panshi Agriculture and Rural
Affairs Bureau, 294576808@qq.com
Ren, J. X., Panshi Agriculture and Rural
Affairs Bureau, 1104335154@qq.com
Wu, Y. M., Futai Town, 771525172@qq.com
Li, L., Niuxin Town, 438840716@qq.com
|
(To be continued on the next page)
(Continued)
Item
|
Description
|
Authors
|
Li, E. G., Jichang Town, 452664788@qq.com
Yao, L. P., Baoshan Town, 4319347@qq.com
Zheng, F., Baoshan Town, 3585321664@qq.com
Yan, G. D., Hulan Town, 408105266@qq.com
Zhang, C. M., Yantongshan Town,
13904447332@139.com
Pu, R., Quchaihe Town, 1220747698@139.com
Guo, C. H., Chaoyangshan Town,
857619789@139.com
Sun, Z. G., Fu??an Sub-district,
905116379@qq.com
Gu, Q., Mingcheng Town, 617392620@qq.com
Zhou, L. G., Hongqiling Town,
394037490@qq.com
Hu, H. Y., Yima Town, 13904422991@139.com
Zhang, L. J., Shizui Town,
771525172@qq.com
Sun, H. F., Economy Development Zone,
965440179@qq.com
Li, H. S., Heishi Town, 2364176139@qq.com
|
Geographical
region
|
Panshi city, Jilin province.
|
Year
|
2000–2021
|
Data Format
|
.shp, .tif, .xlsx, .docx, .jpg
|
Data Size
|
22.4 MB (compressed to 7.22 MB)
|
Data files
|
Five documents (study area, physical
geography, variety characteristics, management data, natural characteristics
and historical and cultural traditions)
|
Data publisher
|
Global Change Research Data Publishing
& Repository, http://www.geodoi.ac.cn
|
Address
|
11A, Datun Road, Chaoyang District,
Beijing, 100101, China
|
Data sharing policy
|
Data from
the Global Change Research Data Publishing & Repository includes metadata, datasets
(in the Digital Journal of Global Change Data Repository), and
publications (in the Journal of Global Change Data & Discovery). Data sharing policy
includes: (1) Data are openly available and can be free downloaded via the
Internet; (2) End users are encouraged to use Data subject to
citation; (3) Users, who are by definition also value-added service
providers, are welcome to redistribute Data subject to written permission
from the GCdataPR Editorial Office and the issuance of a Data redistribution
license; and (4) If Data are used to compile new
datasets, the ??ten per cent principal?? should be followed such that Data
records utilized should not surpass 10% of the new dataset contents, while
sources should be clearly noted in suitable places in the new dataset[5]
|
Communication
and searchable system
|
DOI, CSTR, Crossref, DCI, CSCD,
CNKI, SciEngine, WDS/ISC, GEOSS
|
3 Dataset Development
3.1 Physical Geographic Data
3.1.1
Case Area
The
case area is the paddy fields from 34 sub-watersheds in Panshi city (county-level),
Jilin city (prefecture-level) of Jilin province, with an area of 17,787 ha. The
Panshi city is located in the central and southern parts of Jilin province, between
42??39??N–43??27??N and 125??39??E–126??41??E. Panshi city covers an area of 3,861 km2.
It has jurisdiction over 14 towns, 3 sub-districts and 2 provincial economic
development zones (Figure 1).
3.1.2 Meteorological Characteristics
Panshi
city has a temperate continental monsoon climate with four distinct seasons: a
dry and windy spring, a hot and rainy summer, a cool and sunny autumn, and a
long and cold winter. The temperature difference between day and night is large[6,7].
Ten observation stations were established over the case area to automatically
record the rice growth conditions. The indicators from the stations include
water quality, soil, meteorology, vegetation, pests and diseases (Table 2).
The annual average temperature in Panshi city
is 4.6 ºC, and the annual accumulated temperature above 10 ºC is
between 2,578 and 3,093 ºC. The annual average precipitation is 699.6 mm,
mainly in June to August. The annual sunshine hours are 2,491.2 h with

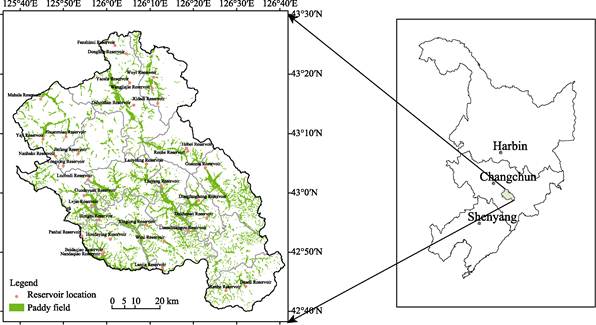

Figure 1 Geographical
location and scope of the case area
Table 2 Ten observation stations in the case area
Number
|
Station Code
|
Station Name
|
Longitude (ºE)
|
Latitude (ºN)
|
1
|
402
|
Lanjia Monitoring Station
|
126.218,002,3
|
42.786,998,7
|
2
|
429
|
Baoshan Monitoring Station
|
126.043,998,7
|
42.845,901,5
|
3
|
750
|
Huanghe Monitoring Station
|
126.095,001,2
|
43.219,898,2
|
4
|
751
|
Yaji Monitoring Station
|
125.759,002,7
|
43.160,301,2
|
5
|
752
|
Panhai Monitoring Station
|
125.904,998,8
|
42.873,699,2
|
6
|
753
|
Wusi Monitoring Station
|
126.222,999,6
|
42.863,899,2
|
7
|
754
|
Guanma Monitoring Station
|
126.397,003,2
|
43.050,201,4
|
8
|
755
|
Renhe Monitoring Station
|
126.459,999,1
|
42.728,500,4
|
9
|
756
|
Dongfanghong Monitoring Station
|
126.328,002,9
|
42.969,398,5
|
10
|
757
|
Liuyang Monitoring Station
|
126.231,002,8
|
42.991,001,1
|
125
frost-free days by average. The annual
extreme temperatures are ‒42.6 and 36.1 ºC, respectively.
The major part of
black soil in China lies in the central plain of Jilin province (Figure 2). Of
which the cultivated black soil is 12.93 million ha (Figure 4). In terms of
surface slope, 68% of the cultivated black soil is in slope region (not flat).
The gently sloping farmland of 2??–6??and above 6?? account for half of each[2,3]
(Figure 3 and Figure 4). The sub-types of the black soil are meadow soil
and dark brown soil.

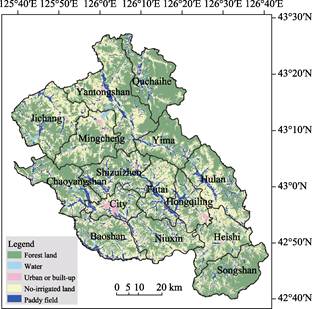

Figure 2 Land use of the case area
|

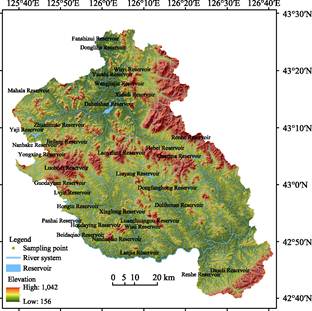

Figure 3 DEM of the case area
|
Table 3 Soil carbon, nitrogen and organic matter in the
case area
|
Statistics
|
N/%
|
C/%
|
C/N
|
Organic matter/%
|
Max
|
0.48
|
7.11
|
14.81
|
12.49
|
Min
|
0.12
|
1.16
|
9.63
|
1.89
|
Mean
|
0.21
|
2.20
|
10.72
|
3.68
|

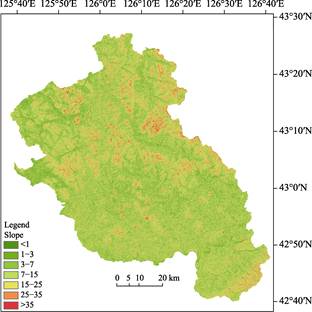

Figure 4 Slope of the case area
|
3.1.3 Soil Properties
A
total of 39 soil samples from the case area were collected, and nitrogen
content (N%), carbon content (C%), carbon-nitrogen ratio (C/N), and soil metal
elements were tested by the Physical and Chemical Analysis Center of the
Institute of Geographic Sciences and Natural Resources Research, Chinese
Academy of Sciences (IGSNRR/CAS). The nitrogen (N) content was about 0.12% to
0.48%, the carbon (C) content was about 1.16% to 7.11%, the C/N was 9.63 to
14.81, and the organic matter content was
between 1.89% and 12.49% (Table 3).
The soil metal
contents in the case area are far lower than the soil pollution risk screening
value of the corresponding paddy field in the soil environmental quality
standard (GB 15618??2018). Therefore, the soil in the area is rich in organic
matter, high in nitrogen and carbon, and low in harmful heavy metals (Table 4).
3.1.4 Water Resources and Quality
There
are abundant water resources in Panshi city. The average annual water resource
is 893 million m3, with 781 million m3 from surface
water, and 112 million m3 from groundwater. The two major rivers in
the case area are the Huifa river in the south and the Yinma river in the
north, divided by the Hadaling Mountains. There are 65 sub-rivers in the case
area, with a total drainage area of 3,867.31 km2 (Figure 5). The
average annual rainfall is 719 mm, decrease gradually from southeast (803 mm)
to northwest (624 mm).
Table 4 Soil element contents in the case area and comparison against national
standard
Elements
|
Max
|
Min
|
Mean
|
Soil environmental quality standard (Screen value) GB 15618
|
Al (mg/kg)
|
113,035.83
|
18,529.53
|
46,802.13
|
‒
|
Ba (mg/kg)
|
1,594.86
|
250.74
|
642.75
|
‒
|
Ca (mg/kg)
|
11,246.70
|
1,409.85
|
6,117.49
|
‒
|
Co (mg/kg)
|
30.14
|
6.83
|
16.03
|
‒
|
Cu (mg/kg)
|
33.28
|
8.41
|
21.09
|
100
|
Fe (mg/kg)
|
24,298.13
|
7,280.82
|
14,995.63
|
‒
|
K (mg/kg)
|
32,943.00
|
12,347.73
|
20,665.66
|
‒
|
La (mg/kg)
|
78.00
|
1.56
|
28.37
|
‒
|
Li (mg/kg)
|
74.45
|
21.76
|
39.99
|
‒
|
Mg (mg/kg)
|
40,074.33
|
4,257.30
|
13,064.31
|
‒
|
Mn (mg/kg)
|
1,892.31
|
280.46
|
838.73
|
‒
|
Na (mg/kg)
|
25,248.96
|
8,857.01
|
14,550.36
|
‒
|
Ni (mg/kg)
|
52.24
|
14.08
|
31.01
|
100
|
P (mg/kg)
|
1,895.49
|
498.72
|
951.52
|
‒
|
Sc (mg/kg)
|
24.75
|
6.36
|
11.66
|
‒
|
Sr (mg/kg)
|
286.73
|
53.12
|
144.70
|
‒
|
Ti (mg/kg)
|
8,173.87
|
2,570.93
|
5,292.86
|
‒
|
V (mg/kg)
|
133.58
|
48.41
|
95.04
|
‒
|
Zn (mg/kg)
|
133.07
|
40.37
|
82.13
|
250
|
Hg (mg/kg)
|
0.06
|
0.02
|
0.03
|
0.6
|
As (mg/kg)
|
14.98
|
4.46
|
8.50
|
25
|
Pb (mg/kg)
|
79.92
|
16.55
|
35.89
|
140
|
Cr (mg/kg)
|
138.37
|
32.00
|
72.00
|
300
|
There are 794 water
storage projects in Panshi city: 4 medium reservoirs, 23 small-I reservoirs,
133 small-II reservoirs, and 634 ponds and dams, with a total water storage
capacity of 130 million m3[6,7]. Reservoirs and ponds are used as
the main irrigation water sources in the rice planting area, and there are no
polluting factories and enterprises in the case area. We tested the water
qualities from three water sources: reservoir, groundwater and snow in Panshi
city. The indicators included 25 elements and ions such as aluminum, arsenic,
and boron. It can be found that all indicators of water quality are better than
the urban drinking water supply standards (Table 5).
3.2 Rice Characteristic Data
3.2.1 Rice Varieties
Based
on the local planting habits and rice quality performance[8–12], six
rice varieties were selected, including: Daohuaxiang-2, Changle-520, Jinongda-667,
Jida-518, Tongyu-269, and Jihong-6. Rice seeds are purchased by Panshi
Agricultural Materials Station to ensure the quality. Rice cultivar
characteristics are briefed below (Figure 6).
(1)
Daohuaxiang-2
Plant height is
90–100 cm with strong and concentrated tillers, neat, erect leaves, dark green
leaves, no awn, seed coat light brown. Ear length is 21.6 cm, an ear mature
grain is 130 and average seed setting rate is 90%–92%. It belongs to a kind of
japonica rice with oval grains, and the thousand-grain weight is 26.8 grams.
The rice has the characteristics of good quality, good palatability,
stickiness, non-regeneration, and clear fragrance. It is disease resistance and
lodging resistance. The growth period is between 138 and 140 days, and the
active accumulated temperature is 2,700–2,800 ºC. The yield is
about 7,500 kg/ha.
(2) Changle-520

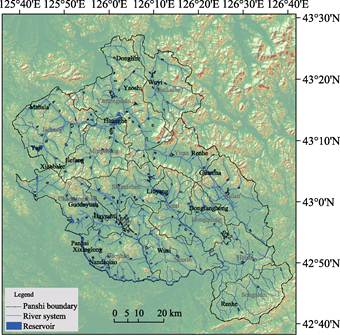

Figure 5 Hydrological system of the case area
|
Plant height is
111.6 cm, with compact plant type, strong tillering ability, raised flag
leaves, and green stems and leaves. Panicle length is 22.4 cm, the average
panicle grain is 122.3, and the seed setting rate is 90.9%. With long grain
shape, golden glume and no awn or short awn, the 1,000 grain weight is 25.8 g.
The taste value is 89.76. From 2018 to 2019, artificial inoculation of
bacterial strains at seedling stage and multi-point natural induction at adult
stage were adopted for two consecutive years. The identification results showed
that it was moderately susceptible at seedling stage, moderately resistant to
leaf blast and susceptible to ear blast. Among the 16 effective identification
points of natural induction of sheath blight in the field from 2018 to 2019,
the highest disease level was 7, showing moderate susceptibility. Growth period
is 136 days, and the accumulated temperature is about 2,720 ºC
(above 10 ºC). The yield is about 8,000 kg/ha.
(3) Jinongda-667
Plant height is
113.6 cm, with compact plant type, strong tillering ability, upright flag
leaves, and green stems and leaves. Ear length is 19.6 cm with semi erect ear
type. The average ear grain is 143.1 and seed setting rate is 87.3%. With oval
grain, yellow glume and no awn, 1,000 grain weight is 23.6 g. From 2016 to
2018, artificial inoculation of bacterial strains at the seedling stage and
natural induction identification at multiple places in the disease area at the
adult stage were used for three consecutive years. The results of disease
resistance identification showed that the seedling blast was moderately
susceptible, the leaf blast was moderately resistant and the ear blast was
susceptible. Among the 19 effective identification sites naturally induced by
sheath blight in the field from 2016 to 2018, the highest disease grade was
grade 5 and showed moderate resistance. The growth period is 137 days, and the
accumulated temperature is about 2,740 ºC (above 10 ºC). The yield is
about 9,500–10,000 kg / ha.
(4) Jida-518
Plant height is 109.8 cm with compact plant type,
strong tillering ability, raised flag leaves, and green stems and leaves. Ear
length is 18.7 cm with half-curved ear type. The average number of grains per
ear is 123.7, and seed setting rate is 82.1%. With oval grain, glume and glume
tip yellow, occasionally sparse short awn, 1000-grain weight is 26.0 g. From
2012 to 2014, artificial inoculation of mycobacteria at the seedling stage, and
natural induction and identification of multiple points in the ward at the
adult stage were used. The results showed that it showed moderate resistance to
seedling blast, moderate resistance to leaf blast, and moderate sensitivity to
ear blast. Among the 20 effective identification points for natural induction
of sheath blight resistance in the field from 2012 to 2014, the highest disease
grade was grade 5, showing moderate resistance. The growth period is 143 days,
and the accumulated temperature is about 2,850 ??C (above 10 ??C). The yield is
about 8,500 kg/ha.
(5) Tongyu-269
The plant height is 102.8 cm with moderate
plant type, strong tillering power, erect and raised flag leaves, and green
stems and leaves. Ear length is 19.2 cm, with partial semi-curved ear type. The
average ear grains are 154.5, and seed setting rate is 89.8%. With oval grain,
glume yellow and no awn, 1000-grain weight is 23.3 g. From 2015 to 2017,
artificial inoculation of seedling stage mycobacteria was used, and multi-point
off-site natural induction identification in adult-plant stage wards. The
results showed that the seedling blast showed moderate resistance, leaf blast
showed moderate resistance, and panicle blast showed moderate resistance. Among
the 19 effective identification points of natural induction of sheath blight in
the field from 2015 to 2017, the highest disease grade
Table 5 Irrigation water quality
from three sources in Panshi city and comparison against national standard
Index
|
Groundwater
|
Reservoir
|
Snow
|
Urban drinking water supply standard
|
Al (mg/L)
|
0
|
0
|
0.02
|
0.2
|
As (mg/L)
|
0
|
0
|
0
|
0.01
|
B (mg/L)
|
0.01
|
0.01
|
0
|
0.5
|
Ba (mg/L)
|
0.03
|
0.03
|
0.01
|
0.7
|
Ca (mg/L)
|
70.08
|
27.70
|
5.46
|
–
|
Cd (mg/L)
|
0
|
0
|
0
|
0.003
|
Co (mg/L)
|
0
|
0
|
0
|
–
|
Cr (mg/L)
|
0
|
0
|
0
|
0.05
|
Cu (mg/L)
|
0
|
0
|
0
|
1
|
Fe (mg/L)
|
0
|
0.01
|
0
|
0.3
|
K (mg/L)
|
3.37
|
2.93
|
0.91
|
–
|
Li (mg/L)
|
0.00
|
0
|
0.00
|
–
|
Mg (mg/L)
|
10.19
|
5.35
|
0.78
|
–
|
Mn (mg/L)
|
0
|
0.01
|
0
|
0.1
|
Mo (mg/L)
|
0
|
0
|
0
|
0.07
|
Na (mg/L)
|
19.33
|
7.26
|
1.60
|
200
|
Ni (mg/L)
|
0
|
0
|
0.00
|
0.02
|
P (mg/L)
|
0.06
|
0.04
|
0.04
|
–
|
Pb (mg/L)
|
0
|
0
|
0
|
0.01
|
Se (mg/L)
|
0
|
0
|
0
|
0.01
|
SiO2 (mg/L)
|
23.77
|
4.68
|
1.42
|
–
|
SO42– (mg/L)
|
26.18
|
18.22
|
2.85
|
250
|
Sr (mg/L)
|
0.30
|
0.14
|
0.03
|
–
|
V (mg/L)
|
0
|
0
|
0
|
–
|
Zn (mg/L)
|
0.02
|
0
|
0.01
|
1
|
was 5, showing
moderate resistance. The growth period is 140 days, and the accumulated
temperature is about 2,800 ºC (above 10 ºC). The yield is
about 8,000–8,500 kg/ha.
(6) Jihong-6
Plant height is
about 103.7 cm, with compact plant type, strong tillering ability, raised sword
leaves, and green stems and leaves. Ear length is about 17.3 cm, with loose ear
type, neat main tillers and ears. The average ear grain is 100.5, and the seed
setting rate is 88.8%. With oval grain, yellow glume and glume tip and sparse
top awn, 1000-grain weight is 25.4 g. From 2011 to 2013, the strains were
artificially inoculated at the seedling stage and naturally induced in
different places in the disease area at the adult stage. The results showed
that they were moderately resistant to seedling blast, moderately resistant to
leaf blast and sensitive to ear blast. Among the 20 effective identification
sites for natural induction of resistance to sheath blight in the field from
2011 to 2013, the highest disease grade was grade 7, showing moderate
susceptibility. The growth period is 138 days, the accumulated temperature is
about 2,800 ºC (above 10 ºC). The yield is about 7,300 kg/ha.
Figure 6 Sensory
characteristics of six rice varieties in case area
3.2.2 Nutritional Quality of Panshi
Qiantang (Thousands Reservoirs) Rice
Nutritional
qualities of Panshi Qiantang rice were tested by two units: the Grain and
Product Quality Supervision, Inspection and Testing Center (Harbin) of the
Ministry of Agriculture and Rural Affairs; and Jiangsu Shipu Testing Service
Co., Ltd. (Table 6). According to Table 6, the chalkiness of the six rice
samples are between 1.4% and 4% and adhesive strength reaches to 81–98 mm.
Referring to the national quality rice standard (GB 17891??2017), the chalkiness
of the first-class rice is lower than 2% and that of the second-class is 2% to
5%. All the Panshi Qiantang rice samples except for the Daohuaxiang-2, meet the
national standard for first-class rice.
Comparing
against the national standard for rice in Wuchang (GBT 19266??2008) and for rice
in Panjin (GBT 18824??2008), the quality of Panshi Qiantang rice is far better
than the specified value of Wuchang rice and Panjin rice in the three
indicators of chalkiness degree, percentage of grains with chalkiness, and
adhesive strength. In terms of amylose index, four of the six varieties of
Qiantang rice have the equivalent quality as Wuchang rice and Panjin rice, with
Tongyu-269 and Daohuaxiang-2 having slightly lower amylose index.
3.3 Management Data
??Qiantang
(Thousands Reservoirs) rice?? was registered as a trade mark in 2020 (Figure
7).
3.3.1 Rice Planting Management
Panshi city has established a ??Qiantang rice??
production leading group, with the party committee secretaries of all towns as
the group leaders and village secretaries and staffs as the team members, to
ensure the standardization of rice cultivation.
Table 6 Nutrition of six Panshi rice samples and comparison
against two national standards
Indicators
|
Jida 518
|
Jihong 6
|
Jinongda 667
|
Tongyu 269
|
Daohuaxiang 2
|
Changle 520
|
Wuchang rice
GBT 19266??2008
|
Panjin rice
GBT 18824??2008
|
% of grains with chalkiness
|
6
|
8
|
5.5
|
3.5
|
7.5
|
7
|
??15
|
??30
|
Chalkiness degree
|
1.5
|
1.9
|
1.9
|
1.4
|
4
|
1.7
|
??5
|
??5
|
Adhesive strength (mm)
|
81
|
82
|
89
|
98
|
95
|
94
|
??70
|
??60
|
Alkali spreading value
|
7
|
7
|
4.6
|
4.7
|
5.3
|
5.1
|
–
|
–
|
Amylose content
|
15.42
|
15.26
|
15.6
|
13.2
|
14
|
17.1
|
15–20
|
15–20
|
Thousand seed weight
|
23.2
|
22.9
|
18.7
|
18
|
22.8
|
22.9
|
–
|
–
|
Professionals are assigned to be responsible
for rice production, and rice cultivation technicians are invited to the field
to guide and demonstrate rice planting. The main process of rice planting is
recorded and archived for traceability. Some
specifications for rice production have been established, including: planting,
irrigation, fertilization, acquisition, storage, pest management, and natural
disaster response.
The main
measures of Qiantang rice cultivation in Panshi city are as follows:
(1) Rice field
selection. The air quality should meet the ambient air quality standard (GB 3095).
The soil quality should conform to the land environmental quality??agricultural
soil pollution risk management and control standards (GB 15618). Irrigation
water must meet the water quality standard for farmland irrigation (GB 5084).
The environment of rice production areas must meet the environmental quality
standards of green food production areas (NY/T 391??2021).
(2) Rice variety
selection. After multiple screening, 6 rice varieties were selected for
planting, namely: Daohuaxiang-2, Changle-520, Jinongda-667, Jida-518,
Tongyu-269, Jihong-6.
(3) Rice seed
treatment and seedling technique. The quality of seeds should meet the national
first-class standard set by GB 4404.1??1996, Seed needs to be sun-dried outdoors
in late March, laid 8–10 cm thick under the sun, sun-dried for 2–3 days, and
turned 3–4 times each day. Seeds should be selected with salt water or yellow
mud water with a density of (1.08–1.13) ??10–6 kg/L. In the early and
middle of April, the rice seeds were soaked and disinfected, and the
germination was accelerated under appropriate temperature and moisture. This
process is carried out according to the production, processing, identification
and management standard of organic products (GB/T 19630??2019).
(4) Field
technique. (a) Fertilization: carry out deep ploughing in autumn, and
transplant rice in late May. The paddy fields that produce A-grade green food
rice should apply organic fertilizers only. (b) Irrigation: reasonable
irrigation of high-quality rice should be shallow water transplanting, deep
water seedling protection, shallow water tillering promotion, deep sun drying
and tiller control, deep water protection of tires, and intermittent grain
increase, so as to save water while maintaining yield and quality. (c) Pest and
disease control: follow the national standard GB/T 19630??2019 comprehensive
management of pests and diseases and NY/T 393??2020 guidelines for the use of
pesticides in green food. Place a frequency-vibration insecticidal lamp every 4
ha in the field to trap and kill rice borers. (d)Weed control: manually, and
stock ducks in paddy fields.
3.3.2 Rice Harvesting and Processing
(1)
Harvest and storage management. The rice should be harvested in time after
maturity, and the threshing should only be conducted when the moisture content
of the rice drops to 15%, so that the moisture content can be kept at a lower
level. The packaging of Grade A green quality rice shall comply with the
national standard GB/T 17109. Different varieties should be treated separately,
and their transportation, storage, and processing must comply with the NY/T 5190
standard.
Figure 7 The trademark of Panshi Qiantang rice
|
(2)
Rice processing enterprise selection. Only qualified rice enterprises can
conduct rice processing and they should follow the national standards of
GB1354??2009, GB 5490—1985, and GB/T 5539—1985.
3.3.3 Qiantang Rice Traceability System
(1)
Scope of traceability: geographical location, time, and quality.
(2)
Traceability data: In the origin of Qiantang rice, the traceability data mainly
includes three categories: planting, processing and storage.
Planting: farmer name of rice fields,
soil, water, rice varieties, fertilizer and pesticide use.
Processing:
qualification of the rice enterprises, site environment, and standards adopted.
Storage:
warehouse environment, finished grain batch, check-in time, check-out time,
operator, and quality inspection information of finished grain.
3.3.4 Product Business Promotion
(1) Product positioning:
green, eco-friendly, organic, and healthy rice.
(2) Production model: double layer structure, i.e., rural comprehensive
service cooperatives (village level), and supply and marketing groups (county
level).
(3) Sales model: village comprehensive service cooperatives (village collective
economic organizations), cooperatives and order sales, aided by traceability
system.
(4) Brand management: based on the product positioning of ??Qiantang rice??,
strictly manage the rice cultivation environment.
3.4 Social Economy and Rice Cultivation History
3.4.1 Population and Economy Development
of Panshi City
According to the census data of China in 2010 and 2020, the population of
Panshi city has decreased from 405,779 in 2010 to 370,238 in 2020, a drop of
135,541 or 26.80% over 10 years. The shrink of rural population is as serious as that of
urban population (Table 7).
Table 7 Population changes in Panshi city from
2010 to 2020
|
Total population
|
Urban population
|
Urban %
|
Rural population
|
Rural %
|
2010
|
405,779
|
231,004
|
45.67
|
277,775
|
54.92
|
2020
|
370,238
|
163,592
|
44.19
|
206,646
|
55.81
|
Difference
|
‒135,541
|
‒67,412
|
‒1.48
|
‒71,129
|
0.89
|
Change (%)
|
‒26.8
|
‒29.81
|
‒3.24
|
‒25.6
|
1.62
|
Meanwhile, the GDP of Panshi city has also dropped, yet the primary
industry is relatively stable. The grain area (102,670–11,2571 ha, +9.6%) and
yield increased slightly, and the rice area ( 20,785–17,787 ha, –14.42%) and
yield decreased slightly (Table 8).
3.4.2 Rice planting history in Northeast
China
Rice has been planted in Northeast
China for a long time. According to the New Book of Tang??Bohai Biography, there
was rice from Lucheng during the Tang dynasty over 1,300 years ago[13].
In 1910, Korean peasants moved to Panshi. In 1917, a Korean farmer at
Da-an-tun, Chaoyangshan (now Chaoyangshan Town), opened a 12-mu (12??667 m2) paddy
field. Since 1949, Panshi county has been encouraging rice cultivation. In late
1980s, rice replaced corn as the staple food of local people.
Table
8 Agricultural economy in Panshi city from
2010 to 2020
|
GDP
(??104 yuan)
|
The primary industry (??104 yuan)
|
Grain area ( ha)
|
Grain yield (??104 tons)
|
Rice area ( ha)
|
Rice yield
(??104 tons)
|
2010
|
242.9
|
37.8
|
102,670
|
63.02
|
20,785
|
13.2
|
2020
|
129.3
|
37.7
|
112,571
|
75.6
|
17,787
|
12.7
|
Difference
|
‒113.6
|
‒0.1
|
9,901
|
‒12.58
|
‒2,998
|
‒0.5
|
Change(%)
|
‒46.77
|
‒0.26
|
9.6
|
‒19.96
|
‒14.42
|
‒3.78
|
Rice seedling raising and cutting
technique also experienced a series of innovations. (1) in 1949, rice planting
was mainly scattered, and seedling raising and transplanting accounted for only
10%. In 1952, seedling raising and transplanting reached 50%. By 1958, all old
paddy fields were using seedling raising and transplanting. (2) Seedling
raising method: before 1949, it was waterbed seedling raising. In 1958, wet
seedling raising was promoted. By 1965, wet seedling raising had been normally
used. (3) Plant spacing and row spacing: There was no plant spacing and row
spacing before 1952. The 20 cm??20 cm spacing came into being since 1952 and
became popular in 1965. Meanwhile the 30 cm??10 cm spacing was also accepted by
some places. (4) Seedling technique: In 1965, plastic
film seedling was used; in 1975, greenhouse seedling was used. In 1985,
greenhouse plate seedling was used. Since 2000, rice varieties in Panshi city
gradually tended to be of high quality[14].
4 Discussion and Conclusion
The
habitat of the case product (Qiantang rice) is located in the black soil
region in northeast China. The unique geographical environment has given birth
to quality rices with regional characteristics in Panshi city, Jilin province.
But there are still some issues that need further research.
4.1 The Standardized Management of Qiantang
Rice
While the current national standards are
relatively comprehensive for rice planting management, the industry standards
and local standards tailored to Qiantang rice are still lacking, including:
irrigation water quality standards for Qiantang rice, planting standards for
different varieties of rice, standards for water-soil-farmland ecosystems in
different planting areas, standards for cultivation and screening of Qiantang
rice seed resources, integrated standards for production, processing, and
transportation traceability of Qiantang rice.
4.2 Black Soil Protection and Sustainable Use
Panshi
Qiantang rice is planted in the permanent farmland of black soil. To prevent soil
fertility from decline and conserve the growth environment, the following
issues need to be further studied: return rice straw to field after treatment,
implement rotation by different varieties, conduct land fallow and conservative
tillage, uplift soil organic matter, balance soil nutrients.
4.3 Outflow and Return of Rural Population
The
main cause of population outflow in Panshi is lack of employment opportunities.
This case study offers a novel way to solve this problem. The planting,
processing, transportation, management and other links of Qiantang rice
management can provide jobs, enable farmers to work in their hometown to obtain
appropriate income, attract migrant workers to come back, promote local
economic development, and gradually alleviate the problem of population loss.
Author Contributions
Song,
X. F., Yu, J. Q., Qi, W., Wang Z. W. and Fu, J. Y. designed and coordinated the
case study. Yang, L. H. and Yao, D. X. analyzed the dataset and wrote the
manuscript. Qiao, Y. B., Chen, C. H. and Ren, J. X. compiled the dataset. Chen,
C. H., Wu, Y. M., Li, L., Zhang, L. J., Yao, L. P., Zheng, F., Yan, G. D.,
Zhang, C. M., Piao, R., Li, E. G., Guo, C. H., Sun, Z. G., Gu, Q., Zhou, L. G.,
Sun, H. F., Hu, H. Y. and Li, H. S. sampled the rice and ecological elements,
maintained the monitoring stations, and offered case management information.
Du, X. L. provided data of rice varieties and quality. Liu, H. B. reviewed the
basic farmland data. Zhu, X. G. provided real-time monitoring data. Yang, L. H.,
Yao, D. X. and Fu, J. Y. provided rice quality and soil elements data. Wu, F.
provided information on management and marketing of Qiantang rice.
Acknowledgements
We
thank Professors Liu, Chuang and Dr. Wang, Zhenbo of the Institute of
Geographic Sciences and Natural Resources Research, CAS for their guidance to
this case study. We also thank all people in Panshi city for their support
during soil and water sampling.
Conflicts of Interest
The
authors declare no conflict of interest.
References
[1]
Liu,
C., Gong, K., Liu, Y. H., et al. An
innovative solution on geographical indications for environment &
sustainability (GIES) [J]. Journal of
Global Change Data & Discovery, 2021, 5(3): 237‒248.
https://doi.org/10.3974/geodp.2021.03.03.
[2]
Dou,
S., Guo, D. Soil type distribution and black soil land protection in Jilin
province [J]. Journal of Jilin
Agricultural University, 2018, 40(4): 449‒456.
[3]
Chinese
Academy of Sciences. Northeast black soil white paper (2020) [R]. 2021.
[4]
Song,
X. F., Yu, J. Q., Qi, W., et al.
Panshi Qiantang (Thousands Reservoirs) rice case dataset on permanent farmland
of ecosystem protection and sustainable development [J/DB/OL]. Digital Journal of Global Change Data
Repository, 2022. https://doi.org/10.3974/geodb.2022.05.05.V1. https://cstr.escience.org.cn/
CSTR:20146.11.2022.05.05.V1.
[5]
GCdataPR Editorial Office.
GCdataPR data sharing policy [OL]. https://doi.org/10.3974/dp.policy.2014.05
(Updated 2017).
[6]
Zhang,
J. J., Han, X. J. Urgent problems to be solved in water resources management in
Panshi city [J]. Jilin Water Resources,
2016(12): 38‒39, 47.
[7]
Liu,
H. J., Wang, Z. X., Zhang, M. Study on sustainable utilization of urban water
resources in Panshi city [J]. Water
Resources & Hydropower of Northeast China, 2010, 28(12): 31‒32.
[8]
Fang,
X. Q., Huang, K., Li, X., et al.
Report on breeding technology of new rice variety Jida japonica rice 518 [J]. Northern Rice, 2015, 45(5): 59‒60.
https://doi.org/10.16170/j.cnki.1673-6737.2015.05.022.
[9]
Zheng,
X. F. Standardized cultivation technology model of Daohuaxiang-2 rice [J]. Agriculture of Jilin, 2018(13): 34.
[10]
Chu,
X. C., Zhao, J. H., Qiu, X. K., et al.
Report on breeding technology of a new edible rice variety Tongyu-269 with high
quality, high yield and disease resistance [J]. North Rice, 2019, 49(6): 48‒49.
[11]
Guo,
S. N., Zhao, X., Zhang, C. Y., et al.
Study on supporting cultivation techniques of rice variety Jihong-6 in cold and
cool japonica rice area of Jilin province [J]. Journal of Northeast Agricultural Sciences, 2021, 46(6): 26‒30, 63.
[12]
Pu,
X. J., Kong, L. M., Tang, M., et al.
Report on breeding technology of new rice variety ??Jihong-6?? [J]. Jilin Agriculture, 2019(16): 72.
[13]
Ou,
Y. X., Song, Q. New Tang Dynasty [M]. Beijng: Zhong Hua Book Company, 1975.
[14] Panshi County Chronicles
Compilation Committee. Panshi County Annals [M]. Changchun: Jilin People??s
Publishing House, 1999: 343‒355.
