Journal of Global Change Data & Discovery2019.3(4):364-369

[PDF] [DATASET]

Citation:Wei, H., Lv, C. H., Yang, K. J., et al.Spatial Distribution Datasets for Facility Agriculture in the Tibetan Plateau and Two Typical Regions[J]. Journal of Global Change Data & Discovery,2019.3(4):364-369 .DOI: 10.3974/geodp.2019.04.08 .

DOI: 10

Spatial Distribution Datasets for Facility
Agriculture in the Tibetan Plateau and Two
Typical Regions

Wei, H. 1,2  Lv, C. H. 1,2*  Yang, K. J. 3  Liu, Y. Q. 1,2

1. Key Laboratory of Land Surface Pattern and Simulation, Institute of Geographic Sciences and Resources Research, CAS, Beijing 100101, China;

2. University of Chinese Academy of Sciences, Beijing 10049, China;
3. Forestry College, Fujian Agriculture and Forestry University, Fuzhou 350002, China





Abstract: During the past decade, facility agriculture has grown quickly in the Tibetan Plateau and has become a new highlight of the region??s agricultural development. Identifying the distribution pattern and spatiotemporal change characteristics of facility agriculture in the Tibetan Plateau is helpful for understanding trends in its development and providing support for rational planning of its future development. Using high-resolution image data obtained from Google Earth in 2018 as the data source, this study first determined the area used for facility agriculture in the Tibetan Plateau by visual interpretation and mapped its spatial distribution with ArcGIS. Then, Xining and Lhasa were selected as two typical regions and the changes in the areas dedicated to facility agriculture in the decade between 2008 and 2018 were identified. The results showed that in 2018, the total area dedicated to facility agriculture in the Tibetan Plateau was 9,426.95 hm2, which was mainly distributed in the major cities and their surrounding areas in southern Tibet Autonomous Region and eastern Qinghai Province. Of the total land area dedicated to facility agriculture, about 65.53% was distributed in Qinghai and 29.96% in Tibet, respectively. In the past ten years, facility agriculture has developed rapidly in Xining and Lhasa, with the area increasing from 537.32 hm2 and 616.12 hm2 in 2008 to 2,231.68 hm2 and 1,448.30 hm2 in 2018, respectively. In both cities, facility agriculture land showed a spatial variation trend spreading from the urban area to the periphery, resulting in a great change in regional distribution.

Keywords: facility agriculture; the Tibetan Plateau; spatial distribution; high-resolution imagery

1 Introduction

Facility agriculture is an agricultural production model that uses artificial technologies to improve light and temperature conditions in order to realize efficient agricultural production[1?C4]. China is the country with the largest area under facility cultivation in the world; the main types of facility agriculture are plastic greenhouses, solar greenhouses, and terraced greenhouses[4?C5]. In the Tibetan Plateau, traditional alpine agriculture dominated by grassland animal husbandry and crop production is the main source of income for farmers and herdsmen and also determines the dietary structure, which is mainly composed of tsampa, dairy products, beef, and mutton[5-9]. With socioeconomic development, the diet has gradually changed and has promoted an increase in demand for vegetables and fruits. Therefore, traditional agriculture based on planting highland barley and wheat has been unable to meet dietary needs, particularly with respect to vegetables. As greenhouses can overcome the limitations of low temperatures with respect to vegetable and fruit production, facility agriculture has emerged and developed rapidly on the Tibetan Plateau.

Detecting the spatial distribution of and recent changes in facility agriculture can provide support for the rational planning and adjustment of facility agriculture. Current studies of facility agriculture mainly focus on the aspects of engineering technologies[3,10?C11], benefits[12?C14], research methods[9,15], and environmental impacts[16-19], while no studies have addressed the issues of the spatial distribution of and temporal changes in facility agriculture[5], due mainly to the lack of spatial distribution data for facility agriculture. Therefore, we obtained and compiled spatial distribution datasets for facility agriculture for the whole Tibetan Plateau in 2018 and two typical areas of Xining and Lhasa in 2008 and 2018, based on high-resolution Google Earth satellite images with a resolution of 0.24?C0.48 m.

2 Metadata of the Dataset

The spatial distribution data set of facility agriculture in the Tibetan Plateau and two typical regions[20] are shown in Table 1.



Table 1  Metadata Summary of Spatial Distribution Datasets of Facility Agriculture in the Tibetan Plateau and Two Typical Regions

Items

Description

Dataset full name

The Spatial Distribution Datasets of Facility Agriculture in the Tibetan Plateau

Dataset short name

(??????????)

Authors

Wei, H., X-4306-2019, Institute of Geographic Sciences and Resources Research, CAS, irene1993weihui@163.com

Lv, C. H., Institute of Geographic Sciences and Resources Research, CAS, luch@igsnrr.ac.cn

Yang, K. J., AAH-6922-2019, Forestry College, Fujian Agriculture and Forestry University, kaijieyoung@163.com

Liu, Y. Q., F-6616-2017, Institute of Geographic Sciences and Resources Research, CAS, yaqun_liu@163.com

Geographical region

The Tibetan Plateau

Year

2008, 2018

Temporal resolution

1 Year

Dataset format

.shp

Data size

2.42 MB

Spatial resolution

1 m

Data files

Spatial distribution data for facility agriculture: data in the Tibetan Plateau in 2018; data in Xining in 2008; data in Xining in 2018; data in Lhasa in 2008; data in Lhasa in 2018

Foundations

Chinese Academy of Sciences (XDA20040301)

Computing environment

ArcGIS

Data Publisher

Global Change Research Data Publishing & Repository, http://www.geodoi.ac.cn

Address

No. 11A, Datun Road, Chaoyang District, Beijing 100101, China

Data sharing policy

Data from the Global Change Research Data Publishing & Repository include metadata, datasets (data products), and publications (in this case, in the Journal of Global Change Data & Discovery). The data sharing policy includes the following provisions: (1) Data are openly available and can be downloaded free of charge via the Internet; (2) End users are encouraged to use the data, subject to citation; (3) Users, who are by definition also value-added service providers, are welcome to redistribute data subject to written permission from the GCdataPR Editorial Office and the issuance of a data redistribution license, and; (4) If data are used to compile new datasets, the ??ten percent principle?? should be followed such that the data records utilized should not surpass 10% of the new dataset contents, while sources should be clearly noted in suitable places in the new dataset[21].

Communication and searchable system

DOI, DCI, CSCD, WDS/ISC, GEOSS, China GEOSS

3 Data Source and Acquisition Method

The data used in this study are high-resolution Google Earth satellite images with resolutions ranging from 0.24m (level 19) to 0.48m (level 18). First of all, we identified the areas dedicated to facility agriculture in the whole of the Tibetan Plateau in 2018 by visual interpretation. The Tibetan Plateau boundary is based on a vector diagram[22]; the geographic coordinate system is GCS_WGS_1984, and the projected coordinate is WGS_1984_ UTM_Zone_47N. The data extraction was mainly based on November 2017 to November 2018 satellite images, from which 70.47% and 16.40% of the facility agriculture lands were acquired from the satellite images in 2018 and those from November to December 2017, respectively. The remaining 13.13% of facility agriculture land is scattered in the sparsely populated regions of northwest Tibet, northwest Qinghai, and Xinjiang. As no recent image data were available, the area was extracted from images from October 2010 to October 2017. The interpretation data obtained based on Google Earth were stored as a kml file and then transformed into an shp file using the transformation tool ArcGIS10.5.

Considering the difficulty in obtaining earlier high-resolution images of the whole Tibetan Plateau and as facility agriculture is mostly distributed in and around major cities, this study chose Xining and Lhasa as representative areas and identified the areas dedicated to facility agriculture in these two cities by visual interpretation to detect temporal changes, based on high-resolution images (0.24?C0.48 m) from November 2007?CDecember 2008 and November 2017?CNovember 2018.

4 Results

4.1 Composition of the Dataset

The spatial distribution dataset for facility agriculture in the Tibetan Plateau and its typical areas contains five shp files, as presented in Table 1, including Spatial distribution data for facility agriculture in the three different places.

4.2 Data Results

4.2.1 Distribution of Facility Agriculture in the Tibetan Plateau

In 2018, the total area of facility agriculture in the Tibetan Plateau was 9,426.95 hm2, which was mainly distributed in the major cities and their surrounding areas in the southern Tibet Autonomous Region and eastern Qinghai Province (Figure 1). Qinghai had an area of 6,177.48 hm2 dedicated to facility agriculture, accounting for 65.53% of the total area. Tibet had an area of 2,826.61 hm2 dedicated to facility agriculture, accounting for 29.96% of the total area. Gansu and Sichuan had areas of 228.01 hm2 and 154.35 hm2 dedicated to facility agriculture, accounting for 2.42% and 1.64% of the total area, respectively. Yunnan had the smallest area dedicated to facility agriculture: only 42.49 hm2, accounting for 0.45% of the total area dedicated to facility agriculture.

4.2.2 Spatiotemporal Variation of Facility Agriculture in Lhasa and Xining

From 2008 to 2018, facility agriculture in Lhasa developed rapidly, with the land dedicated to facility agriculture increasing from 616.12 hm2 to 1,448.30 hm2 (Figure 2). In 2008, facility agriculture in Lhasa was mainly concentrated in the urban area, covering an area of 401.61 hm2, accounting for 65.18%, and the rest was distributed in Qushui 27.72 hm2



Figure 1  Spatial distribution of facility agriculture land in the Tibetan Plateau in 2018[22]



 (4.50%), Dazi 10.86 hm2 (1.76%), and Linzhou 3.99 hm2 (0.65%). After 2008, facility agriculture in Lhasa spread outside the urban area. By 2018, the proportion of facility agriculture in the urban area dropped to 29.82%, while it increased rapidly in Qushui and Dazi counties, reaching 27.01% and 22.49%, respectively. The area dedicated to facility agriculture in Linzhou County increased from 3.99 hm2 to 24.85 hm2, and in Mozhugongka and Nimu counties, the area was 20.99 hm2 and 0.20 hm2, respectively (Table 2).





Figure 2  Spatial distribution of facility agriculture land in Lhasa in 2008 (a) and 2018 (b)



Table 2  The area of facility agriculture land in Lhasa in 2008 and 2018

County

2008

2018

Area (hm2)

Proportion (%)

Ranking

Area (hm2)

Proportion (%)

Ranking

Dazi

10.86

1.76

4

325.77

22.49

3

Duilongdeqing

171.95

27.91

2

253.42

17.50

4

Urban area

401.61

65.18

1

431.89

29.82

1

Linzhou

3.99

0.65

5

24.85

1.72

5

Qushui

27.72

4.50

3

391.19

27.01

2

Mozhugongka

0.00

0

6

20.99

1.45

6

Nimu

0.00

0

6

0.20

0.01

7

The area dedicated to facility agriculture in Xining increased from 537.32 hm2 in 2008 to 2,231.68 hm2 in 2018. Similar to the trend in the development of facility agriculture in Lhasa, facility agriculture also spread from the urban area to the periphery. The proportion of facility agriculture in the urban area decreased from 48.83% in 2008 to 16.07% in 2018, and that in the area increased from 251.61 hm2 to 358.69 hm2. The area dedicated to facility agriculture in Datong increased from 169.71 hm2 in 2008 to 630.39 hm2 in 2018, while the proportion decreased from 31.58% to 28.25%. Huangzhong showed the fastest development of facility agriculture, with the area dedicated to it increasing by 1,083.75 hm2 (accounting for 63.96% of the newly increased area in the whole city) compared with 2008; it reached 1,183.75 hm2 or 53.04% of the total area in Xining. Due to the relatively long distance from the urban area, the proportion of facility agriculture in Huangyuan decreased from 2.98% in 2008 to 2.64% in 2018 (Table 3).

Table 3  The area of facility agriculture land in Xining in 2008 and 2018

County

2008

2018

Area (hm2)

Proportion (%)

Ranking

Area (hm2)

Proportion (%)

Ranking

Datong

169.71

31.58

2

630.39

28.25

2

Huangyuan

16.00

2.98

4

58.85

2.64

4

Huangzhong

100.00

18.61

3

1183.75

53.04

1

Urban area

251.61

48.83

1

358.69

16.07

3

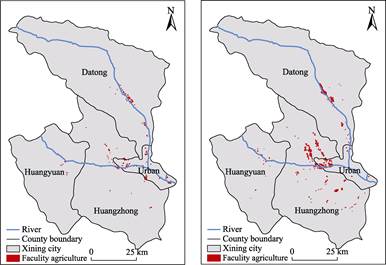

Figure 3  Spatial distribution of facility agriculture land in Xining in 2008 (a) and 2018 (b)

5 Discussion and Conclusion

The meter-resolution dataset for facility agriculture built in this study reveals the spatial distribution of facility agriculture in the Tibetan Plateau. It is the first high-resolution spatial dataset of facility agriculture and can be used to support the development of facility agriculture in the Tibetan Plateau. To use the dataset, the year of the Google Earth image should be adjusted to the year corresponding to the dataset so as to avoid inaccurate data correspondences. The spatiotemporal changes in facility agriculture and the causes were analyzed in detail in our paper[5] published in Resource Science in 2019, so no further analyses are given. It should be noted that in the process of data publishing, we have made further interpretations, and thus the data are modified and improved. Therefore, this dataset has some differences from the data published in the early paper[5]; we suggest using this dataset instead.

Author contributions

Lu, C. H. promoted this research, designed the structure of the dataset, and revised the paper; We, H. interpreted the data for facility agriculture in the Tibetan Plateau in 2018 as well as in Xining and Lhasa in 2008, processed and compiled the dataset, and wrote the paper; Yang, K. J. interpreted the data for some facility agriculture in Tibet Autonomous Region in 2018; Liu, Y. Q was involved in the data processing.



References

[1]       Zhang, N. M. Theory and Practice of Facility Agriculture [M]. Beijing: Chemical Industry Press, 2006.

[2]       He, F., Ma, C. W. Analysis of the development status and countermeasures of facility agriculture in China [J]. Bulletin of Chinese Agronomy, 2007, 23(3): 462?C465.

[3]       Fao, F., Yu, L., Lu, S. Q., et al. Status quo and development trend of facility agriculture in foreign countries [J]. Journal of Zhejiang Forestry College, 2009, 26(2): 279?C285.

[4]       Zhang, F. R., Zhang, X. J., Zhou, J. Spatial changes of greenhouse land and policy enlightenment in metropolitan areas [J]. Resources Science, 2015, 37(4): 637?C644.

[5]       Wei, H., Lv, C. H., Liu, Y. Q., et al. Spatial distribution and temporal changes of facility agriculture on the    Tibetan Plateau [J]. Resources Science, 2019, 41(6): 1093?C1101.

[6]       Deng, A. Research on the Ecological Economy of Grassland Pastoral Areas on the Qinghai?CTibet Plateau [M]. Beijing: The Ethnic Publishing House, 2005.

[7]       Gao, Y. J., Deng, A. Tibetan nomads?? sedentary living and the construction of new pastoral areas: with         two communities of Gannan Tibetan Prefecture as the case [J]. Ethno-National Studies, 2007, (5): 28?C37.

[8]       Yu, C. Q., Zhong, Z. M. Discussion on development transformation strategies and path choices of agriculture and animal husbandry in Tibet [J]. Bulletin of Chinese Academy of Sciences, 2015, (3): 313?C321.

[9]       Wen, J. Functions, patterns, and countermeasures combining farming with stockbreeding on the Qinghai?C    Xizang Plateau [J]. Journal of National Resources, 2000, 15(1): 56?C60.

[10]    Qi, F., Zhou, X. Q., Ding, X. M., et al. Study on the classification method of facility agricultural engineering technology [J]. Chinese Society of Agricultural Engineering, 2012, 28(10): 1?C7.

[11]    Dai, Q. W., Cao, J., Fan, Y., et al. Systemic design of internet of things for application in modern facility      agriculture [J]. Jiangsu Journal of Agricultural Sciences, 2012, 28(5): 1173?C1180.

[12]    Li, Z. M., Shen, J., Wang, Z., et al. Production efficiency analysis of solar greenhouse and plastic      big-arch shelter in Beijing [J]. China Vegetables, 2011, (22?C24): 13?C19.

[13]    Zhang, G. Y., Liu, G. Y., Cui, L. N., et al. A Study of facility agriculture land use efficiency in northwestern China ?? a case study of the Turpan city in Xinjiang [J]. Xinjiang Agricultural Sciences, 2011, 48(6): 1157?C1161.

[14]    Zhang, Z. M., Zhou, L. J., Qian, W. R. Research on the relationship between facility agriculture operation     scale and agricultural productivity??based on the investigation and analysis in Zhejiang province [J]. Issues in Agricultural Economy, 2011, (12): 23?C29.

[15]    Zou, L. D., Guo, H., Zhu, X. F., et al. Automatically extracting the spatial distribution information of facility agriculture [J]. Remote Sensing Technology and Application, 2014, 29(4): 669?C674.

[16]    Wang, J., Luo, Y. M., Ma, W. T., et al. Pollution characteristics and health risk assessment of phthalate esters in typical intensive agricultural soils [J]. China Environmental Science, 2013, 33(12): 2235?C2242.

[17]    Gu, J. Y., Gu, W., Zhang, H., et al. Biological measures for soil improvement of facility agriculture in China [J]. Journal of Beijing Normal University (Natural Science), 2016, 52(1): 70?C75.

[18]    Chen, D. Y., Yang, Z. C., Kong, Z., et al. Current situation and prospect of carbon sequestration facility       agriculture [J]. Journal of Agricultural Science and Technology, 2018, 20(2): 122?C128.

[19]    Shi, J., Zhang, N. M., Bao, L. Research progress on soil degradation and regulation of facility agriculture      in China [J]. Chinese Journal of Eco-Agriculture, 2013, 21(7): 787?C794.

[20]    Wei, H., Lu, C. H., Yang, K. J., et al. Spatial distribution dataset of facility agriculture in the Tibetan Plateau and its typical area [DB/OL]. Global Change Research Data Publishing & Repository, 2019. DOI: 10.3974/geodb.2019.05. 10.V1.

[21]    GCdataPR Editorial Office. GCdataPR data sharing policy [OL]. DOI: 10.3974/dp.policy.2014.05 (Updated 2017).

[22]    Zhang, Y. L., Li, B. Y., Zheng, D. On the scope and area of Qinghai?CTibet Plateau[J]. Geographical Research, 2002, 21(1): 1?C8.
