Simulation-Prediction Dataset of Annual Irrigation Water Requirement of Cotton and Winter Wheat in Five Central Asian Countries under RCP2.6 and RCP4.5 Scenarios (2020-2100)

Tian, J.

Key Laboratory of Water Cycle and Related Land Surface Processes, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China



Abstract: Central Asia is one of the largest arid and semi-arid regions in the world. The region is currently facing significant shortage of water resources for agricultural irrigation. Agricultural irrigation is the largest water consumer and hence understanding the water requirement of the main crops is important for planning of agricultural water resources. The study presented in this paper was based on the Representative Concentration Pathway RCP2.6 and RCP4.5 climate change scenarios of Coupled Model Intercomparison Project Phase 5 (CMIP5). The water requirements of cotton and winter wheat in five Central Asian countries (Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan and Turkmenistan) in 2020-2100 were estimated using the crop coefficient approach. The dataset is archived in .shp and .tif formats in 332 data files, with the data size of 4.65 MB (compressed to 2.16 MB in one file).

Keywords: Central Asian countries; cotton and winter wheat; future irrigation water requirement; RCP2.6 scenario; RCP4.5 scenario

Dataset Available Statement:

The dataset supporting this paper was published at: Tian, J. Irrigation water requirement for cotton and winter wheat in five Central Asian countries under RCP2.6 and RCP4.5 scenarios (2020?C2100) [J/DB/OL]. Digital Journal of Global Change Data Repository, 2020. DOI: 10.3974/geodb.2020.01.04.V1.

1 Introduction

The five countries located in Central Asia include Kazakhstan, Kyrgyzstan, Tajikistan,

Uzbekistan and Turkmenistan. Central Asia is one of the largest arid and semi-arid regions in the world, with scarce precipitation, intensive evaporation and a serious shortage of water resource. According to World Bank??s Monthly Rainfall Database (https://climateknowl­ed­geportal.worldbank.org/), the average rainfall in 2000?C2016 was 523 mm in Tajikistan, 414 mm in Kyrgyzstan, 270 mm in Kazakhstan, 211 mm in Uzbekistan, and 155 mm in Turkmenistan. In addition to the energy sector, agriculture occupies an important position in the economic development of the five Central Asian countries.

Irrigated farmlands in the five Central Asian countries are mainly distributed in the south and southeast of the entire region. According to the land use data of European Space Agency (ESA, https://www.esa-landcover-cci.org/) Climate Change Initiative (CCI) in 2015, the area of irrigated farmland was 86,269 km2 in Kazakhstan, 81,198 km2 in Uzbekistan, 40,233 km2 in Turkmenistan, 32,178 km2 in Kyrgyzstan and 14,283 km2 in Tajikistan. In terms of crop production, the planting area of wheat and cotton in the five Central Asian countries accounted for 93% of the total area cultivated in 2015 based on the statistics of Food and Agriculture Organization (FAO, http://www.fao.org/faostat/en/#data). Irrigation is the most important means of agricultural production, and the most important consumer of water resources in Central Asia[1]. The agricultural irrigation water requirements in Central Asia exceed 90% of all water withdrawals of the two major rivers, the Amu Darya and the Syr Darya[2?C3]. Therefore, the changes in agricultural irrigation have significant impacts on the water resources in this region. The crop water requirement is the key to determining the water requirement of agricultural irrigation[4].

In the present study, which is based on the Representative Concentration Pathway RCP2.6 and RCP4.5 climate change scenarios of Coupled Model Intercomparison Project Phase 5 (CMIP5), the water requirements of cotton and winter wheat in the five Central Asian countries in 2020?C2100 were estimated using the crop coefficient approach. This will provide guidance for the exploration of the development of agricultural water resources in Central Asia in the future. This is also expected to facilitate the future agricultural cooperation between China and the five Central Asian countries under the strategic initiative of the ??the Belt and Road Initiative??.

2 Metadata of the Dataset

The name, author, geographical region, temporal resolution, spatial resolution, data format, data publisher, and data sharing policy of the dataset[5] are shown in Table 1.

3 Methods

3.1 Algorithm Principle

The method of FAO crop water requirement (mm) was used, as shown in equation (1).

                                                                                                                    (1)

Table 1  Metadata summary of the dataset

Items

Description

Dataset full name

Irrigation water requirement for cotton and winter wheat in five Central Asian countries under RCP2.6 and RCP4.5 Scenarios

Dataset short name

IrriWaterRe_CottonWheat_CenAsia_2020-2100

Authors

Tian, J. AAO-7972-2020, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, tianj.04b@igsnrr.ac.cn

Geographical region

Five Central Asian countries        Year   2020?C2100

Temporal resolution

Year

Spatial resolution   0.5 degree

Data format

.tif

Data size    2.16 MB (after compression)

Data files

Annual irrigation water requirement of cotton and winter wheat under scenarios of RCP2.6 and RCP4.5 (2020?C2100)

(To be continued on the next page)

(Continued)

Items

Description

Foundation

Chinese Academy of Sciences (XDA2004030201)

Computing environment

ENVI & IDL (5.1 & 8.3)

Data publisher

Global Change Research Data Publishing & Repository, http://www.geodoi.ac.cn

Address

No. 11A, Datun Road, Chaoyang District, Beijing 100101, China

Data sharing policy

Data from the Global Change Research Data Publishing &Repository includes metadata, datasets (in the Digital Journal of Global Change Data Repository), and publications (in the Journal of Global Change Data & Discovery). Data sharing policy includes: (1) Data are openly available and can be free downloaded via the Internet; (2) End users are encouraged to use Data subject to cita-tion; (3) Users, who are by definition also value-added service providers, are welcome to redistribute Data subject to written permission from the GCdataPR Editorial Office and the issuance of a Data redistribution license; and (4) If Data are used to compile new datasets, the ??ten per cent principal?? should be followed such that Data records utilized should not surpass 10% of the new dataset contents, while sources should be clearly noted in suitable places in the new dataset[6]

Communication and searchable system

DOI, DCI, CSCD, WDS/ISC, GEOSS, China GEOSS, Crossref

where Pe indicates the effective rainfall, namely the rainfall actually used by the crops and was calculated using the USDA method [see equation (2)]; ET indicates the actual crop evapotranspiration, calculated using the crop coefficient approach [equation (3)]; and Ie indicates the irrigation efficiency, namely the ratio of the irrigation water volume actually used by crops to the actual water withdrawals. According to Rost et al.[7], the irrigation efficiency in Central Asia is 56.6% based on a global scale.

                                                                   (2)

where P represents the monthly rainfall (mm).

The actual crop evapotranspiration was calculated using the crop coefficient approach and reference evapotranspiration approach:

                                                                                                                      (3)

where Kc represents the crop coefficient. In this study, the crop coefficients of cotton and winter wheat in the four growth stages in Central Asia given by Scientific Information Centre of Interstate Commission on Water Coordination in Central Asia (SIC-ICWC) were used[8?C9] (Table 2). ET0 is the reference crop evapotranspiration (mm??day?C1), calculated by equation (4)[10]. This method is an improved version of the original FAO method, with particular attention given to the impact of atmospheric CO2 concentration on crop evapotranspiration.

                                               (4)

where ?? indicates the slope of changes in water vapor pressure with temperature (kPa??ºC-1), Rn indicates the net radiation (MJ??m?C2??day?C1), G represents the soil heat flux (MJ??m?C2??day?C1), ?? represents the psychrometric constant (kPa??ºC-1), T is the daily average temperature (ºC), U2 is the daily average wind velocity at a height of 2 m (m??s-1), es refers to the saturation vapor pressure (kPa), ea refers to the actual vapor pressure (kPa), and [CO2] refers to the atmospheric CO2 concentration (ppm). The specific calculation method of each variable is shown in the ??FAO No.56 Irrigation and Drainage Manual??[11].

Table 2  Kc values for cotton and for winter wheat at the four different growth stages

 Growing stage

Planting/Harvesting (date)

 Cotton       Winter wheat

  Growth stages (days)

Cotton  Winter wheat

Crop coefficients (Kc)

Cotton       Winter wheat

Planting: initial

Early-April

Mid-October

30

30

0.55

0.65

Development phase





50

140

0.55

0.65

Mid-season





55

40

0.95-1.15

1.15

Harvest: late-season

Early-October

Early-June

45

30

0.65

0.65

3.2 Technical Route

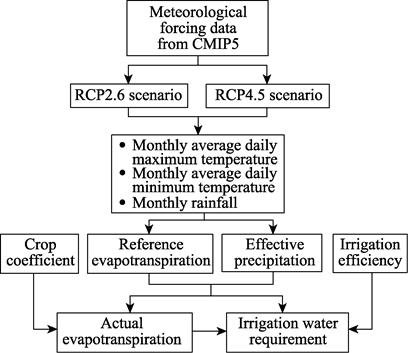

Figure 1  Technical route

The procedures of generating dataset are as follows: the monthly average daily maximum temperature, monthly average daily minimum temperature and monthly rainfall were downloaded from the outputs of 15 climate models under the CMIP5 RCP2.6 and RCP4.5 scenarios. The information about growth phases and crop coefficients of cotton and winter wheat in Central Asia were obtained through literature review. The averages of monthly average daily maximum temperature, monthly average daily minimum temperature and monthly rainfall for the 15 climate models under RCP2.6 and RCP4.5 scenarios were calculated. The effective monthly rainfall was calculated based on the monthly rainfall data. The reference evapotranspiration of cotton and winter wheat was calculated based on the monthly average daily maximum temperature and monthly average daily minimum temperature. The actual evapotranspiration of cotton and winter wheat was calculated using the crop coefficient and reference crop evapotranspiration. Finally, the crop water requirement was obtained using the actual evapotranspiration, effective rainfall and irrigation coefficient.

An extreme and hypothetical situation was assumed in this study, that is, cotton or winter wheat is planted in the entire Central Asia. The results obtained based on such a hypothesis are helpful for analyzing the spatial pattern of the water requirements of cotton and winter wheat in Central Asia in the future. They can be combined with the prediction results of future agricultural lands to analyze the total irrigation water requirement more accurately.

4 Data Results and Verification

4.1 Dataset Composition

This dataset consisted of four parts:

(1) Annual water requirement of cotton in 2020?C2100 under the RCP2.6 scenario;

(2) Annual water requirement of cotton in 2020?C2100 under the RCP4.5 scenario;

(3) Annual water requirement of winter wheat in 2020?C2100 under the RCP2.6 scenario;

(4) Annual water requirement of winter wheat in 2020?C2100 under the RCP4.5 scenario.

The files were named in a uniform way (Table 3).

4.2 Data Results

(1) Future water requirement of cotton under the RCP2.6 and RCP4.5 scenarios

In terms of the spatial distribution, the future water requirement of cotton gradually declined from southwest to north and east under the RCP2.6 and RCP4.5 scenarios (Figure 2-3). It was the highest in Turkmenistan, followed by Uzbekistan, and it was the lowest in Tajikistan and Kyrgyzstan. The future water requirement was also lower in northern Kazakhstan. Such a spatial distribution pattern (532-2,286 mm) remained unchanged in 2020?C2100. Compared with Turkmenistan and Uzbekistan, the higher rainfall during the cotton growing season in Tajikistan, Kyrgyzstan and northern Kazakhstan was the main reason for the lower water requirement of cotton. According to the calculation method of crop water requirement, the spatial characteristics of meteorological conditions (mainly including rainfall, temperature, wind velocity and radiation) basically determined the spatial characteristics of crop water requirement. The spatial distribution characteristics of meteorological conditions under the RCP2.6 and RCP4.5 scenarios were basically the same. Therefore, the spatial distribution pattern of crop water requirement remained unchanged.

Table 3  Data files of the dataset

Fold name

Nomination

Description

Format

Number

Data size

CottonRCP26

CA_yearly_CottonIWR_CO2_RCP26_yeaer_NAN.tif

WGS84: NAN

.tif

81

1.1 MB

CottonRCP45

CA_yearly_CottonIWR_CO2_RCP45_year_NAN.tif

WGS84: NAN

.tif

81

1.1 MB

WheatRCP26

CA_yearly_WheatIWR_CO2_RCP26_year_NAN.tif

WGS84: NAN

.tif

81

1.1 MB

WheatRCP45

CA_yearly_WheatIWR_CO2_RCP45_year_NAN.tif

WGS84: NAN

.tif

81

1.1 MB

(2) Future water requirement of winter wheat under the RCP2.6 and RCP4.5 scenarios

Under the RCP2.6 and RCP4.5 scenarios, the spatial distribution of future water requirement of winter wheat was the same as that of cotton, and also gradually declined from southwest to north and east (Figure 3-4). It was the highest in Turkmenistan, followed by Uzbekistan, and it was the lowest in Tajikistan and Kyrgyzstan. Such a spatial distribution pattern (-329-1,440 mm) remained unchanged in 2020?C2100. The negative value indicated the higher effective rainfall than the crop water requirement, that is, rainfall can meet the requirement of crop growth. Obviously, the water requirement of winter wheat was lower

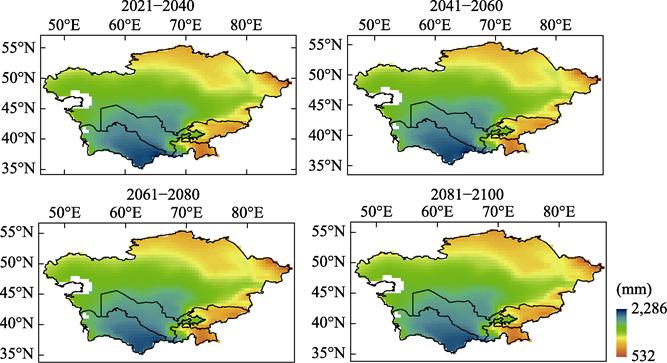

Figure 2  Spatial distribution of water requirement of cotton in five Central Asian countries in four periods under the RCP2.6 scenario

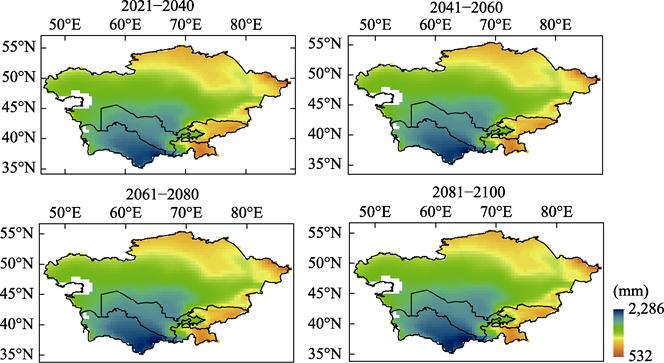

Figure 3  Spatial distribution of water requirement of cotton in five Central Asian countries in four periods under the RCP4.5 scenario

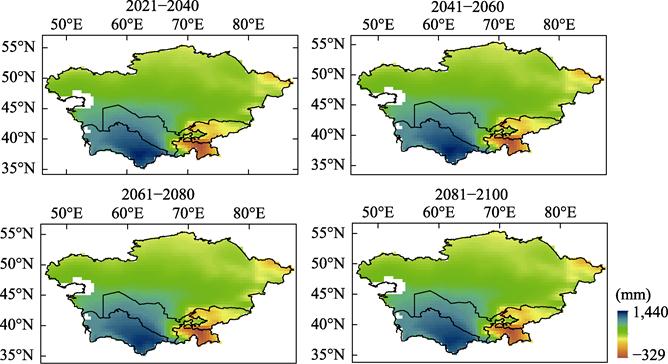

Figure 4  Spatial distribution map of water requirement of winter wheat in five Central Asian countries in four periods under the RCP2.6 scenario

than that of cotton. In Tajikistan, the rainfall during the winter wheat growing season was even higher than the crop water consumption, and hence the crop water requirement was negative. The spatial distribution characteristics of meteorological conditions were basically the same under the RCP2.6 and RCP4.5 scenarios, and therefore the spatial distribution pattern of crop water requirement basically remained unchanged.

(3) Future change trends of water requirements of cotton and winter wheat under the RCP2.6 and RCP4.5 scenarios

The future change trends of water requirements of cotton and winter wheat in 2020?C2100 were analyzed using the Mann-Kendall test. The slope of change trends at the 0.05 level is shown in Figure 6. Under the RCP2.6 scenario, the water requirement of cotton displayed a significant downward trend in mid-eastern and northeastern Kazakhstan, and in eastern Turkmenistan. There was insignificant change in cotton water requirement in other regions. Under the RCP4.5 scenario, the water requirement of cotton increased in the entire Central

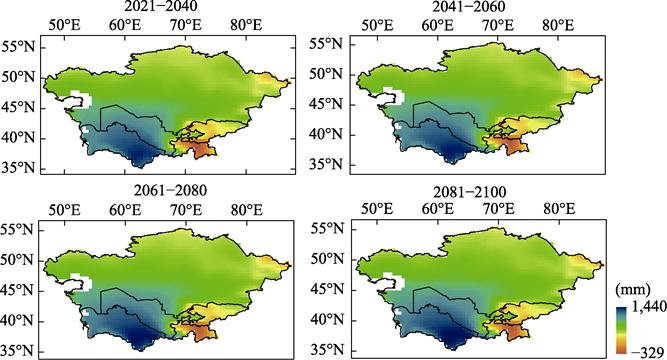

Figure 5  Spatial distribution map of water requirement of winter wheat in five Central Asian countries in four periods under the RCP4.5 scenario

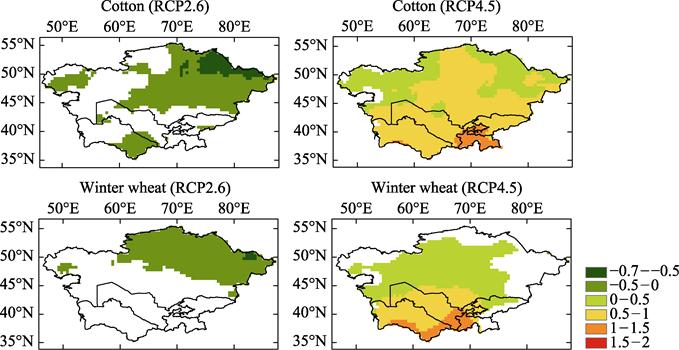

Figure 6  Slope of change trends of water requirements of cotton and winter wheat under the RCP2.6 and RCP4.5 scenarios in 2020?C2100 (at the 0.05 level)

Asia, especially in Tajikistan. Besides, under the RCP2.6 scenario, the water requirement of winter wheat showed a significant downward trend in northeastern Kazakhstan, while it had no obvious trend in other regions. Under the RCP4.5 scenario, except a few regions in eastern, southeastern and northern Central Asia, the water requirement of winter wheat almost increased in the entire Central Asia. This increase was more pronounced in the south of Central Asia. It can be seen that the change trends of water requirements of cotton and winter wheat under the RCP2.6 and RCP4.5 scenarios have great differences, which is mainly due to the differences in the two climate change scenarios. RCP2.6 is a scenario where the radiative forcing first rises to 3.1 W??m-2 by the middle of the 21st century and then gradually declines, and reaches 2.6 W??m-2 by 2100. RCP4.5 is a scenario where the radiative forcing gradually rises and reaches 4.5 W??m-2 by 2100. Therefore, the change trends of meteorological elements vary with time under the two scenarios, leading to different change trends of crop water requirement.

5 Discussion and Conclusion

The water requirements of cotton and winter wheat in five Central Asian countries (Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan and Turkmenistan) in 2020?C2100 were estimated through the crop coefficient approach. The attributes of the datasets generated set as follows time span: 2020?C2100, temporal resolution: year, spatial resolution: 0.5 degrees, and data format: .tif. It is worth noting that the crop water requirement was estimated under an extreme and hypothetical situation, which assumed that cotton or winter wheat is planted in the entire Central Asia. The main reason for this assumption is that it is difficult to predict the specific planting of cotton and winter wheat in the next few decades. The hypothesis used in this paper is more helpful for analyzing the changes in crop water requirement in the entire Central Asia. The dataset reflected the temporal-spatial patterns and change pattern of the water requirements of cotton and winter wheat in the five Central Asian countries in the next 80 years.

According to the data analyzed, it was found that: (1) Under the RCP2.6 and RCP4.5 scenarios, it was the highest in Turkmenistan, followed by Uzbekistan. The future water requirement was the lowest in Tajikistan and Kyrgyzstan, and also lower in northern Kazakhstan. (2) Under the RCP2.6 and RCP4.5 scenarios, it was the highest in Turkmenistan, followed by Uzbekistan, and it was the lowest in Tajikistan and Kyrgyzstan. (3) The spatial distribution patterns of cotton and winter wheat remained basically unchanged under the RCP2.6 and RCP4.5 scenarios in 2020?C2100. (4) The change trends of water requirements of cotton and winter wheat under the RCP2.6 and RCP4.5 scenarios varied significantly. Under the RCP2.6 scenario, the water requirements of cotton and winter wheat displayed significant downward trends only in the northeast of Central Asia, while there were no major changes in other regions. Under the RCP4.5 scenario, the water requirements of cotton and winter wheat remarkably increased almost in the entire Central Asia.



References

[1]      Yang, S. T., Yu, X. Y., Ding, J. L., et al. A review of water issues research in Central Asia [J]. Acta Gegraphica Sinica, 2017, 72(1): 79-93.

[2]      Deng, M. J., Long, A. H., Zhang, Y., et al. Assessment of water resources development and utilization in the five Central Asia countries [J]. Advances in Earth Science, 2010, 25(12): 1347-1356.

[3]      Yuldasheva, G., Hashimova, U., Callahan, J. Current trends in water management in Central Asia [J]. Peace and Conflict Review, 2010, 5: 1-11.

[4]      Tian, J., Zhang, Y. Q. Detecting changes in irrigation water requirement in Central Asia under CO2 fertilization and land use changes [J]. Journal of Hydrology, 2020, 48: 124315.

[5]      Tian, J. Dataset of annual irrigation water requirements of cotton and winter wheat in the five entral Asian countries under RCP2.6 and RCP4.5 scenarios (2020-2100) [J/DB/OL]. Digital Journal of Global Change Data Repository, 2020. DOI: 10.3974/geodb.2020.01.04.V1.

[6]        GCdataPR Editorial Office. GCdataPR data sharing policy [OL]. DOI: 10.3974/dp.policy.2014.05 (Updated 2017).

[7]      Rost, S., Gerten, D., Bondeau, A., et al. Agricultural green and blue water consumption and its influence on the global water system [J]. Water Resources Research, 2008, 44: 10.1029/2007wr006331.

[8]      Stulina, G. Recommendations on hydromodule zoning and crop irrigation rate [Z]. SIC ICWC, Tashkent, 2010.

[9]      Conrad, C., Rahmann, M., Machwitz, M., et al. Satellite based calculation of spatially distributed crop water requirements for cotton and wheat cultivation in Fergana Valley, Uzbekistan [J]. Global and Planetary Change, 2013, 110: 88-98.

[10]   Yang, Y. T., Roderick, M. L., Zhang, S. L., et al. Hydrologic implications of vegetation response to elevated CO2 in climate projections [J]. Nature Climate Change, 2019, 9: 44-48.

[11]   Allen, R. G., Pereira, L. S., Raes, D., et al. FAO irrigation and drainage No.56: crop evapotranspiration [Z].
