A 100-km Raster Dataset of Locust Distribution for Nine Historical Periods in the Northern Hemisphere

Yan, C.^1,2,*  Tian, H. D.¹  Liu, R.²

1. Institute of Zoology, Chinese Academy of Sciences, Beijing 100101, China;

2. College of Ecology, Lanzhou University, Gansu, Lanzhou 730000, China

Abstract: Locust plagues are natural disasters caused by the large-scale occurrence and migration of locusts. Locust occurrence can be transnational and transcontinental; therefore, one of the basic tasks for global locust control is to understand its large-scale spatial and temporal characteristics. In this study, we extracted the temporal and spatial information of locusts in the northern hemisphere from multiple resources, including international English articles, historical documents, and the “Chinese Meteorological Records of the Third Millennium,” and estimated areas of locust occurrence over a period of time. The kernel density method was used to obtain a dataset that included nine periods of locust disaster distribution in the northern hemisphere: before 1000, 1000–1200, 1200–1300, 1300–1500, 1500–1700, 1700–1850, 1850–1900, 1900–1950, and 1950–2000. The data were in Equal Earth projections, with a spatial resolution of 100 km. The dataset was archived in .tif format and consisted of 18 data files with a size of 43.8 KB.

Keywords: locust plague; northern hemisphere; millennium; historical distribution

DOI: https://doi.org/10.3974/geodp.2022.03.05

CSTR: https://cstr.escience.org.cn/CSTR:20146.14.2022.03.05

Dataset Availability Statement:

The dataset supporting this paper was published and is accessible through the Digital Journal of Global Change Data Repository at: https://doi.org/10.3974/geodb.2022.04.07.V1 or https://cstr.escience.org.cn/CSTR:20146.11.2022.04.07.V1.

1 Introduction

A locust plague is a disaster caused by locusts, insects of the order Orthoptera, family Locustidae. Locusts are widely distributed—in tropical and temperate grasslands and deserts worldwide. Under certain conditions, locust populations explode and migrate widely, eating crops and grassland vegetation, causing severe economic losses and famine. One of the main locust species that causes locust plagues in China and around the world is the migratory locust (Locusta migratoria), belonging to the subfamily Acridoidea (Oedipodinae)^[1,2]. Another locust species that frequently causes locust plagues is the desert locust (Schistocerca gregaria), which is found mainly in Africa and throughout western Asia and extends to parts of southern Asia^[3,4]. In North America, locust plagues are mainly caused by the Rocky Mountain locust (Melanoplus spretus) and the high plains grasshopper (Dissosteira longipennis) ^[5,6].

The locust plague is a worldwide disaster. In early human history, locust plagues have been documented in Egypt, Hebrew, ancient Greece, and China. The Exodus and Revelation chapters of the Bible classified locust plagues as a major disaster. In 2020, desert locust plagues hit many parts of the world, from Africa to South Asia, with a massive infestation in East Africa that devastated hundreds of thousands of acres of farmland and reduced food production in India by 30%–50%. In 2003, locust outbreaks in the western U.S. states of Nevada, Utah, and Idaho caused large economic losses. Historically, locusts have caused one of the three major agricultural disasters in China, along with droughts and floods. Since ancient times, locust plagues in China have been widely documented, mostly in the Hebei, Henan, and Shandong provinces^[7]. From 1856 to 1858, locusts plagued Guangdong, Jiangxi, Hunan, Tibet, and the north area of China. The Qing Shilu records that “the locusts covered the sky, blocking the windows and piling up the doors, leaving no gaps in the rooms” and that “the locusts ate all the seedlings, and large numbers of people died.”.

The occurrence of locust plagues is related to many factors, such as locust characteristics, climate, and human activities. Therefore, the prevention and control of locust plagues face significant challenges. Understanding the spatial and temporal characteristics of locust occurrence through its historical distribution is an important basic task for analyzing the factors of locust occurrence. At present, although scholars in China have done a lot of work on the historical dynamics of locust occurrence^[7,8], these studies are often limited to textual descriptions or time series only^[9–11]. Concurrently, the literature and data from other countries are fragmented and lack systematic organization. Moreover, locusts, as a global disaster, can occur across countries and continents, and local data do not reflect the full distribution characteristics. Therefore, a large-scale spatial and temporal distribution dataset of locust occurrence is important and must be developed.

2 Metadata of the Dataset

A summary of the full name, authors, geographic region, year, temporal resolution, spatial resolution, dataset composition, data publication and sharing service, and data sharing policy of the 100-km raster dataset of locust plagues for nine historical periods in the northern hemisphere^[12] is shown in Table 1.

3 Methods

3.1 Data Sources

Because this study aimed to respond to the spatial distribution of locust occurrence in the northern hemisphere, this dataset was developed by obtaining geographic information on locust occurrence from domestic and foreign historical documents and then mapping the spatial distribution in different time periods in the northern hemisphere. The data sources were divided into domestic and foreign. China has a wealth of historical documents with recorded locust plagues. In this study, the locust data in the Chinese region were mainly extracted from the Chinese Meteorological Records of the Third Millennium^[14,15]. The foreign data was mainly searched by Google Scholar, including relevant journal articles and publications (Table 2). The English keywords used included locust plague, locust outbreak, locust swarming, and locust disaster. More than 9,500 records were collected both at home and abroad.

3.2 Locust Historical Distribution Construction

This dataset was based on historical records and focused on reconstructing changes in the

Table 1  Metadata summary of the 100-km raster dataset of locust plagues for nine historical periods in the northern hemisphere

Table 2  Data sources and literature on locust plague

distribution of locust occurrence at different times over the millennium. The latitude and longitude of locust occurrences were obtained by matching contemporary location information with historical records. Locust occurrence is often regional and migratory, and there are gaps in locust occurrence records worldwide. To analyze the overall variation of locust occurrence areas over a long time scale, this dataset estimated the locust occurrence areas according to the kernel density range estimation method for a certain time period (e.g., 1000–1200 A.D.). We then censored the locust occurrence areas with a resolution of 100×100 km (Equal Earth projection). The time intervals were before 1000, 1000–1200, 1200–1300, 1300–1500, 1500–1700, 1700–1850, 1850–1900, 1900–1950, and 1950–2000. Equal Earth and WGS-84 projections were used to build the dataset.

4 Data Results and Validation

In terms of the historical spatial distribution of locust occurrence, locusts in the northern hemisphere were mainly concentrated in the mid-latitudes in the last millennium, consistent with the suitable distribution area of locusts. In terms of longitude, locust records were mainly concentrated in Europe, Africa, and China (Figure 1, 2). In terms of time, locust records were mainly concentrated between 1400 A.D. and 1900 A.D. (Figure 2). The locust plague records in China were the most complete in the last millennium, especially in the Ming and Qing dynasties.

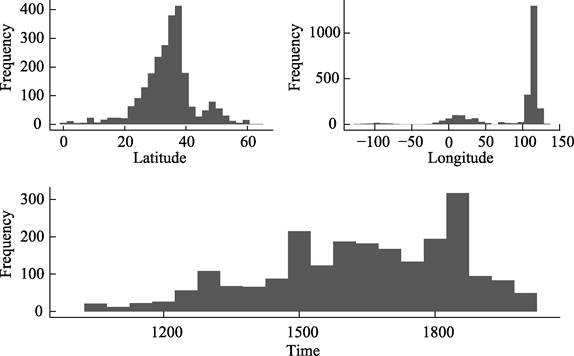

Figure 1  Frequency distribution of locust plagues in latitude, longitude, and time

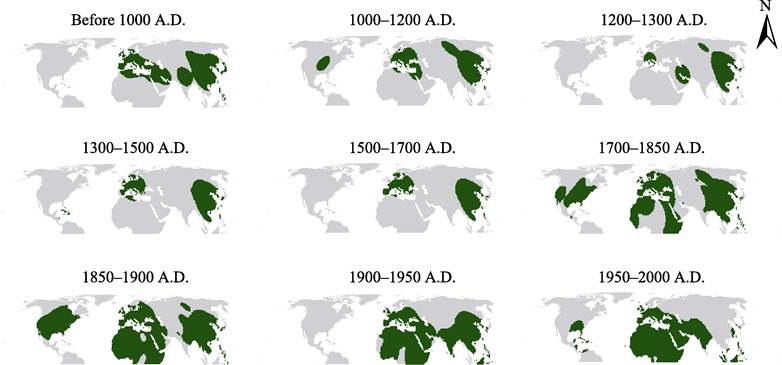

Figure 2  Historical distribution of locust plagues in the northern hemisphere over the past millennium (Equal Earth projection)

5 Conclusion

The historical records of locust occurrence and distribution may be more closely related to the state of national social development and the history of written records. Specifically, locust occurrences in Europe and the United States rarely became plagues after 1990 and in China after 1950, and records decreased significantly, whereas, Africa, the United States, and South Asia had more records only after 1700. Data from Central Asia may have been less recorded because of the lack of written records or geographic reasons. Overall, historically, China has been the most affected in terms of locust occurrence, which is consistent with its status as a historically large agricultural country. Similarly, locust plagues were more severe in North America during the locust agricultural development period. Notably, locust infestations in China and North America have been controlled extremely effectively owing to scientific and rational control measures.

References

[1]      Li, G. An Integrated study on record characteristics and environmental significance of locust plagues in China during the historical period [M]. Lanzhou: Lanzhou University Press, 2008.

[2]      Zhu, H., Ren, B. Research advances in occurrence regulation, influential factors, and efficient control of grasshoppers and locusts [J]. Journal of Environmental Entomology, 2020, 42(3): 520–528.

[3]      Skaf, R., Popov, G. B., Roffey, J., et al. The desert locust: an international challenge [J]. Philosophical Transactions of the Royal Society of London, Series B: Biological Sciences, 1990, 328(1251): 525–538.

[4]      Lecoq, M. Desert locust management: from ecology to anthropology [J]. Journal of Orthoptera Research, 2005, 14(2): 179–186.

[5]      Lockwood, J. A., Debrey, L. D. A solution for the sudden and unexplained extinction of the Rocky Mountain Grasshopper (Orthoptera: Acrididae) [J]. Environmental Entomology, 1990, 19(5): 1194–1205.

[6]      Wakeland, C. C. The High Plains Grasshopper: a Compilation of Facts about Its Occurrence and Control [M]. Washington: US Department of Agriculture, 1958.

[7]      Ma, S. The population dynamics of the oriental migratory Locust (Locusta Migratoria Manilensis Meyen) in China [J]. Acta entomologica sinica, 1958, 8(1): 1–40.

[8]      Zhang, Y. History of Locust Plagues in China [M]. Hefei: Anhui People’s Publishing House, 2008.

[9]      Ma, S., Ding, Y., Li, D. Study on long-term prediction of locust population fluctuations [J]. Acta entomologica sinica, 1965, 14(4): 319–338.

[10]   Tian, H., Stige, L. C., Cazelles, B., et al. Reconstruction of a 1,910-y-long locust series reveals consistent associations with climate fluctuations in China [J]. Proceedings of the National Academy of Sciences, 2011, 108(35): 14521–14526.

[11]   Tian, H., Yan, C., Xu, L., et al. Scale-dependent climatic drivers of human epidemics in ancient China [J]. Proceedings of the National Academy of Sciences, 2017, 114(49): 12970–12975.

[12]   Yan, C., Tian, H., Liu. R. 100-km raster dataset of locust plagues for nine historical periods in the northern hemisphere [J/DB/OL]. Digital Journal of Global Change Data Repository, 2022. https://doi.org/10.3974/geodb.2022.04.07.V1. https://cstr.escience.org.cn/CSTR:20146.11.2022.04.07.V1.

[13]   GCdataPR Editorial Office. GCdataPR data sharing policy [OL]. https://doi.org/10.3974/dp.policy.2014.05 (Updated 2017).

[14]   Zhang, D. A Compendium of Chinese Meteorological Records of the Last 3, 000 year [M]. Nanjing: Jiangsu Phoenix Education Publishing, 2004.

[15]   Yan, C., Tian, H., Wan, X., et al. Climate change affected the spatio-temporal occurrence of disasters in China over the past five centuries [J]. Royal Society Open Science, 2021, 8(2): 200731.

[16]   Nagy, B. Are locust outbreaks a real danger in the Carpathian Basin in the near future? [J] Journal of Orthoptera Research, 1995, 4: 143–146.

[17]   Waloff, Z. V. The distribution and migrations of locusta in Europe [J]. Bulletin of Entomological Research, 1940, 31(3): 211–246.

[18]   Munro, A. The Locust Plague and Its Suppression [M]. London: John Murray, 1900.

[19]   Spinage, C. A. African Ecology (Locusts the Forgotten Plague Part II: History of Locust Plagues) [M]. Heidelberg: Springer, 2012.

[20]   Brázdil, R., Řezníčková, L., Valášek, H., et al. Past locust outbreaks in the Czech Lands: do they indicate particular climatic patterns? [J]. Theoretical and applied climatology, 2014, 116(1): 343–357.

[21]   Jennings, R. C. The locust problem in Cyprus [J]. Bulletin of the School of Oriental and African Studies, 1988, 51(2): 279–313.

[22]   Buj Buj, A. International experimentation and control of the locust plague. Africa in the first half of the 20th century [J]. Nature et environnement, 1995, 3: 93–105.

[23]   Riley, C. V. The Locust Plague in the United States: Being More Particularly a Treatise on the Rocky Mountain Locust or So-called Grasshopper, as It Occurs East of the Rocky Mountains, with Practical Recommendations for Its Destruction [M]. Chicago: Rand, McNally, 1877.

[24]   Lecoq, M., Sukirno. Drought and an exceptional outbreak of the Oriental Migratory Locust, Locusta Migratoria Manilensis (Meyen 1835) in Indonesia (Orthoptera: Acrididae) [J]. Journal of Orthoptera Research, 1999, 8: 153–161.

[25]   Wagner, A. M. Grasshoppered: America’s response to the 1874 Rocky Mountain Locust invasion [J]. Nebraska History, 2008, 89: 154–467.

[26]   Whiting, J. D. Jerusalem’s locust plague [M]. Charleston: Nabu Press, 1915.

[27]   Bodley, E. F. The locust plague in algeria [J]. Science, 1891, 17(436): 329–331.

[28]   Dawson, G. M. Notes on the locust invasion of 1874: in manitoba and the north-west territories [M]. Charleston: Nabu Press, 1876.

[29]   Ballard, C. “A Year of Scarcity”, the 1896 locust plague in Natal and Zululand [J]. South African Historical Journal, 1983, 15(1): 34–52.

[30]   Wichhart, S. The 1915 locust plague in Palestine [J]. Jerusalem Quarterly, 2013, 56(57): 29–39.

[31]   Rainey, R. C., Betts, E., Lumley, A., et al. The Decline of the Desert Locust Plague in the 1960s: Control Operations or Natural Causes? [J]. Philosophical Transactions of the Royal Society of London, Series B: Biological Sciences, 1979, 287(1022): 315–344.

[32]   Gomes, I., Queiroz, A. I., Alves, D. Iberians against locusts: fighting cross-border bio-invaders (1898-1947) [M]. Girona: Sociedad Española de Historia Agraria, 2019.

[33]   Bodkin, G. The locust invasion of Palestine during 1928 [J]. Bulletin of Entomological Research, 1929, 20(2): 123–139.

[34]   Lefroy, H. Locusts in India (Department of Agriculture Bombay, Bulletin No. 32) [M]. Bombay: Department of Agriculture, 1908.

[35]   Maxwell-Darling, R. The outbreak areas of the desert locust (Schistocerca gregaria, Forsk.) in Arabia [J]. Bulletin of Entomological Research, 1937, 28(4): 605–618.

[36]   Albert, J., Bernhardsson, M., Kenna, R. Transformations of Middle Eastern Natural Environments: Legacies and Lessons [M]. New Haven: Yale School of Forestry & Environmental Studies, 1998.

[37]   Bahana, J., Byaruhanga, E. Advances and review of strategies for red locust plague prevention: the control of red locust, Nomadacris Septemfasciata (Serville) into the 21st century [J]. International Journal of Tropical Insect Science, 1999, 19(4): 265–272.

[38]   Hielkema, J., Roffey, J., Tucker, C. Assessment of ecological conditions associated with the 1980/81 desert locust plague upsurge in West Africa using environmental satellite data [J]. International Journal of Remote Sensing, 1986, 7(11): 1609–1622.

[39]   Spurgin, P. A., Chomba, R. S. K. The Bahi Plains—an additional red locust outbreak area in central Tanzania? [J]. International Journal of Tropical Insect Science, 1999, 19(4): 277–282–282.

[40]   Fashing, P. J., Nguyen, N., Fashing, N. J. Behavior of geladas and other endemic wildlife during a desert locust outbreak at Guassa, Ethiopia: Ecological and conservation implications [J]. Primates, 2010, 51(3): 193–197.

[41]   Roffey, J. The build-up of the present desert locust plague [J]. PANS Pest Articles & News Summaries, 1969, 15(1): 12–17.

[42]   Hemming, C., Popov, G., Roffey, J., et al. Characteristics of desert locust plague upsurges [J]. Philosophical Transactions of the Royal Society of London. B, Biological Sciences, 1979, 287(1022): 375–386.

[43]   Salih, A. A., Baraibar, M., Mwangi, K. K., et al. Climate change and locust outbreak in East Africa [J]. Nature Climate Change, 2020, 10(7): 584–585.

[44]   Usman, M., Ijaz, M., Aziz, M., et al. Locust attack: managing and control strategies by the government of Pakistan: a review on locust attack in Pakistan [J]. Proceedings of the Pakistan Academy of Sciences: Part B (Life and Environmental Sciences), 2022, 59(2): 25–33.

[45]   Alomenu, H. Current trends in African migratory locust plague prevention [J]. Outlook on Agriculture, 1985, 14(4): 165–173.

[46]   Joshi, M. J., Raj, V., Solanki, C. B., et al. Desert locust (Schistocera Gregaria F.) outbreak in Gujarat (India) [J]. Agriculture and Food: E-Newsletter, 2020, 2(6): 691–693.

[47]   Showler, A. T. Desert locust control: the effectiveness of proactive interventions and the goal of outbreak prevention [J]. American Entomologist, 2019, 65(3): 180–191.

[48]   Ghosh, S., Roy, A. Desert locust in india: the 2020 invasion and associated risks [OL]. EcoEvoRxiv, 2020. https://doi.org/10.32942/osf.io/3vuj4.

[49]   Ceccato, P., Cressman, K., Giannini, A., et al. The desert locust upsurge in West Africa (2003–2005): Information on the desert locust early warning system and the prospects for seasonal climate forecasting [J]. International Journal of Pest Management, 2007, 53(1): 7–13.

[50]   Roffey, J., Popov, G. Environmental and behavioural processes in a desert locust outbreak [J]. Nature, 1968, 219(5153): 446–450.

[51]   Price, R. E., Müller, E. J., Brown, H. D., et al. The first trial of a Metarhizium Anisopliae var. Acridum Mycoinsecticide for the control of the red locust in a recognised outbreak area [J]. Insect Science and Its Application, 1999, 19(4): 323–331.

[52]   Guilbert, N., De Vreyer, P., Mesplé-Somps, S. The Impact of Income Shocks on Children Education: the 1987–1989 Locust Plague in Mali [M]. DIAL Development Conference—Shocks in Developing Countries; Paris, France, 2011.

[53]   Showler, A. T. Locust (Orthoptera: Acrididae) outbreak in Africa and Asia, 1992–1994: an overview [J]. American Entomologist, 1995, 41(3): 179–185.

[54]   Bahana, J. W., Ngazero, A. K. A locust plague in the making: Upsurges of the Red Locust, Nomadacris Septemfasciata (Serville) in Buzi-Gorongosa Outbreak Area, Mozambique in 1996 [J]. International Journal of Tropical Insect Science, 1999, 19(4): 291–300.

[55]   Johnson, J. J., Jd, T. Locust plague now 20 times worse [OL]. 2020. https://www.icr.org/article/locust- plague-now-20-times-worse.

[56]   Henschel, J. R. Locust times-monitoring populations and outbreak controls in relation to Karoo natural capital [J]. Transactions of the Royal Society of South Africa, 2015, 70(2): 135–143.

[57]   Hokyo, N., Fujisaki, K. Morphometric characters of overwintering adults of the Bombay locust, Patanga Succincta (L.) (Orthoptera: Cyrtacanthacridinae) in outbreak areas of Okinawa [J]. Applied Entomology and Zoology, 1984, 19(2): 170–174.

[58]   Oikonomopoulos, E. NDVI Time Series Analysis for Desert Locust Outbreak Detection and Quantification Analysis of Its Impact on Vegetation Productivity of Sahel [M]. Lund: Lund University GEM thesis series, 2020.

[59]   Yule, W. N., Lloyd, H. J. Observations on migration of hopper bands of the red locust (Nomadacris Septemfasciata Serville) in an outbreak area [J]. Journal of the Entomological Society of Southern Africa, 1959, 22(1): 233–244.

[60]   Jonatan, A. L. The return of locust outbreak in Sumba, Indonesia: a rapid situational analysis (IRGSC Working Paper No. 17) [OL]. 2017. http://www.irgsc.org/publication.

[61]   Showler, A., Potter, C. Synopsis of the 1986–1989 desert locust (Orthoptera: Acrididae) plague and the concept of strategic control [J]. American Entomologist, 1991, 37(2): 106–110.

[62]   Pedgley, D. Weather and the current desert locust plague [J]. Weather, 1989, 44(4): 168–171.

[63]   Pedgley, D., Symmons, P. Weather and the locust upsurge [J]. Weather, 1968, 23(12): 484–492.
