Dataset of Oasis, River System and Mountainous Elevation Classification in Ebinur Lake Basin

GUI Dongwei1,2,3LI Bofei1,2ZHANG Siyuan1,2LIU Chuang4
1 State Key Laboratory of Desert and Oasis Ecology,Xinjiang Institute of Ecology and Geography,Chinese Academy of Sciences,Urumqi 830011,China2 Cele National Station of Observation and Research for Desert-Grassland Ecosystems,Cele 848300,China3 University of Chinese Academy of Sciences,Beijing 100049,China4 Institute of Geographic Sciences and Natural Resources Research,Chinese Academy of Sciences,Beijing 100101,China


Published:Jan. 2023

Visitors:3269       Data Files Downloaded:144
Data Downloaded:725.99 MB      Citations:

Key Words:

Bortala River,Kuitun River,Ebinur Lake,basin,oasis,elevation,Xinjiang Uygur Autonomous Region,data Encyclopedia

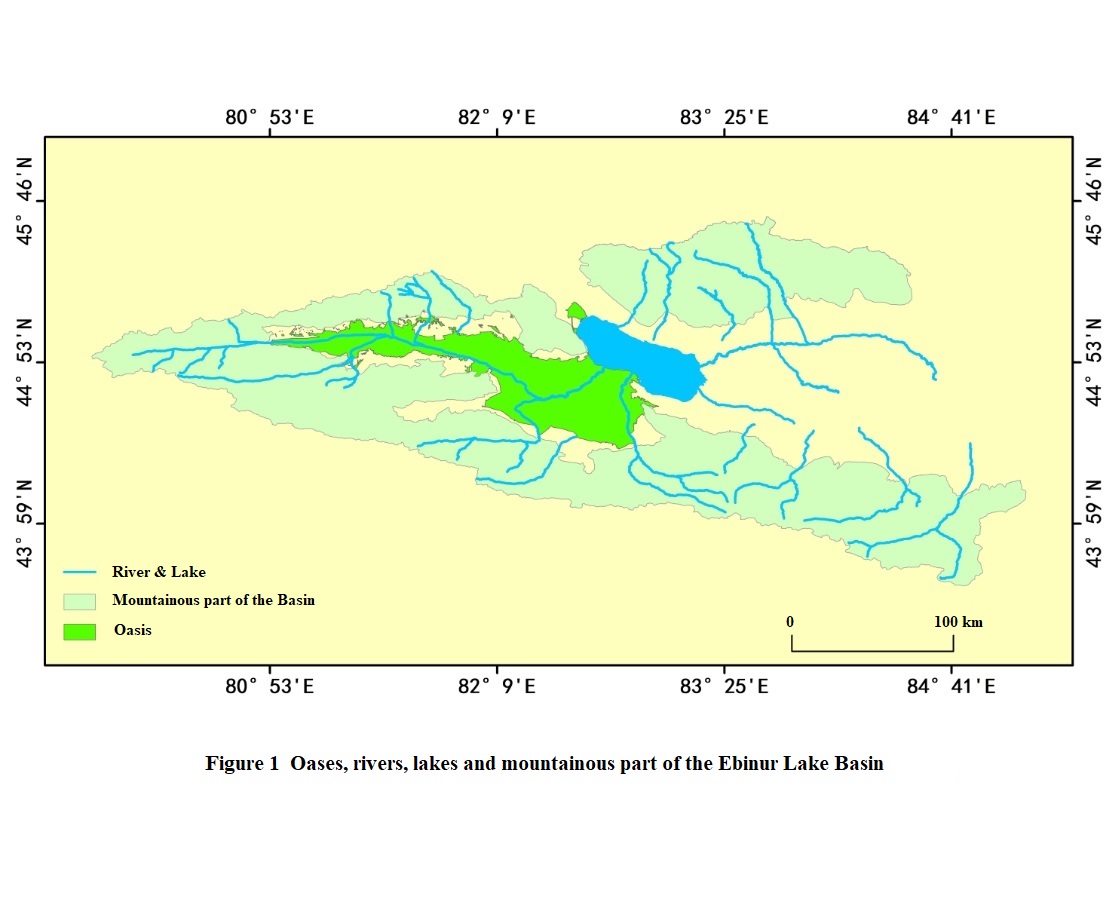

Ebinur Lake Basin Oasis is located in Bortala Mongol Autonomous Prefecture, Xinjiang Uygur Autonomous Region, China. The geo-location of this Oasis is between 44°23′32″N and 45°12′49″N, 80°46′24″E and 83°02′35″E. The Ebinur Lake Basin Oasis consists of 127 oases with a total area of 4,497.00 km². In the Ebinur Lake Basin, the main rivers are Bortala River, Kuitun River and Jinghe River. Their main stream lengths are 265.99 km, 178.49 km and 127.50 km separately. The main lakes are Ebinur Lake and Sailimu Lake, with an area of 1,445.56 km² and 464.20 km² respectively. The geo-location of the mountainous Ebinur Lake Basin is between 43°37′47″N and 45°41′19″N, 79°52′54″E and 85°05′24″E. Its area is 26,591.07 km². The basin is a transnational basin with about 99.22% of the total area in China (Among which, 51.96% is in Bortala Mongol Autonomous Prefecture, 45.51% in Tacheng Prefecture, 2.06% in Yili Administration Region, 0.41% in Shuanghe and 0.06% in Karamay, Xinjiang Uygur Autonomous Region), and about 0.78% in Kazakhstan. The elevation was classified into 10 types in the mountainous Ebinur Lake Basin. The dataset was developed based on Google Earth images, ASTER GDEM 30 m and in situ data. The dataset is consisted of (1) boundary data of the Ebinur Lake Basin Oasis; (2) river system and lakes; (3) boundary data of mountainous part of the Ebinur Lake Basin; (4) elevation classification data of the mountainous Ebinur Lake Basin. The dataset is archived in .kmz, .shp and .tif data formats, and consists of 75 data files with data size of 39.9 MB (Compressed to 6 files with 25.4 MB).

Foundation Item:

Xinjiang Uygur Autonomous Region (2022D01E099)

Data Citation:

GUI Dongwei, LI Bofei, ZHANG Siyuan, LIU Chuang. Dataset of Oasis, River System and Mountainous Elevation Classification in Ebinur Lake Basin[J/DB/OL]. Digital Journal of Global Change Data Repository, 2023.


[1] NASA/METI/AIST/Japan Spacesystems, U.S./Japan ASTER Science Team. ASTER Global Digital Elevation Model V003 [DB/OL]. Distributed by NASA EOSDIS Land Processes DAAC, 2018.
     [2] Editorial Committee of Encyclopedia of Rivers and Lakes in China. Encyclopedia of Rivers and Lakes in China: Section of River Basins in Northwest Region [M]. Beijing: China Water & Power Press, 2014.

Data Product:

ID Data Name Data Size Operation
1 EbinurLake.kmz 180.32KB
2 EbinurLakeBasinOasis.kmz 3128.63KB
3 EbinurLakeBasinOasisWaterSystemEVC.rar 14669.56KB
4 EbinurLakeBasinRiverSystem.kmz 7019.13KB
5 M.EbinurLakeBasin.kmz 370.85KB
6 SailimuLake.kmz 716.79KB
